Designing a Unique ID Generator

A unique ID generator creates globally unique identifiers across distributed systems. Properties vary by design: globally unique (no collisions), K-sortable (IDs roughly increase with time), compact, stateless or stateful.

A naive approach is auto-increment in a central database — but that creates a bottleneck and a single point of failure.

---

Step 1: Requirements#

Question	Answer
Globally unique?	Yes
K-sortable (ordered by date)?	Yes — ordered by timestamp, not by increment of 1
ID length	64-bit integer
Numeric only?	Yes
Scale	Up to 10,000 ID requests per second
Latency	< 1ms per ID generation
Availability	Highly available and fault-tolerant

Challenges in distributed ID generation:

• Collisions — multiple nodes generating IDs independently may overlap.
• Scalability — must support billions of IDs efficiently.
• Ordering — some systems require time-ordered IDs (e.g., Kafka offsets, Twitter posts).
• Availability — must not depend on a single machine or DB auto-increment.

---

Step 2: Options Comparison#

Option	Description	Pros	Cons
Multi-Master Replication	Multiple masters generate IDs from guaranteed unique ranges	Scales with number of nodes	Not time-ordered; hard to scale across data centers
UUID	128-bit identifier, no central coordination	Simple; no SPOF; scales with servers	Not K-sortable; 128 bits (large); not numeric
Ticket Server	Centralised server generates IDs; clients request them	Numeric; K-sortable; works at small–medium scale	Single point of failure; scalability issues under high load
Snowflake (Twitter)	64-bit ID from timestamp + datacenter ID + machine ID + sequence	Numeric; K-sortable; highly scalable; low latency	Requires unique machine ID configuration; more complex

Visual comparison of approaches:

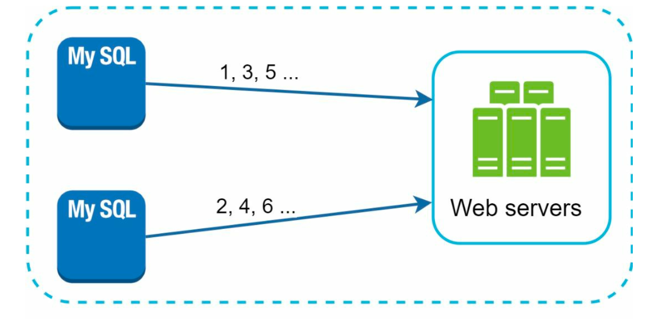

Multi-master replication:

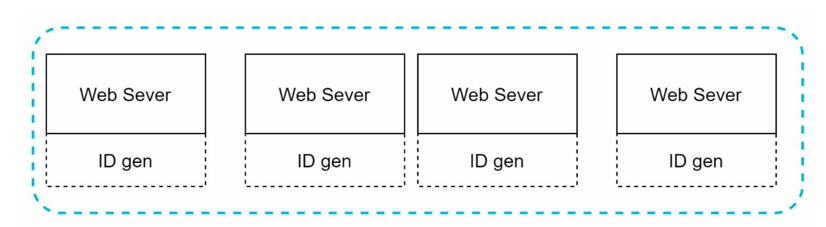

UUID:

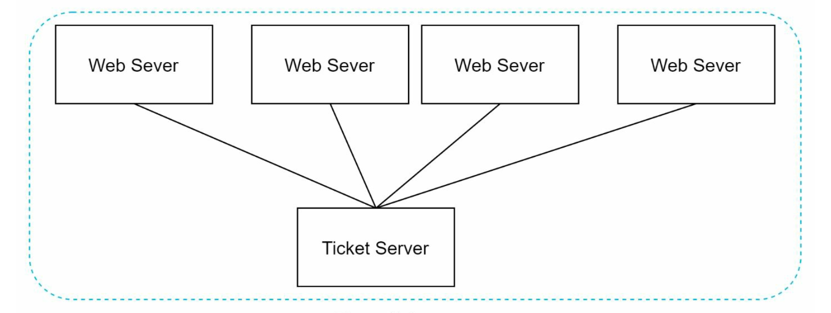

Ticket server:

Snowflake:

---

Twitter Snowflake Design#

Snowflake is a 64-bit unique ID algorithm. It provides:

• Global uniqueness
• Time ordering
• High throughput (millions of IDs/sec)

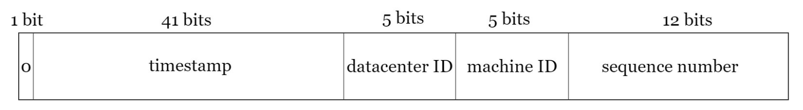

64-bit ID Layout#

Bits	Field	Notes
1	Sign bit	Always 0 — reserved for future use
41	Timestamp	Milliseconds since custom epoch — gives ~69 years of IDs
5	Datacenter ID	Supports up to 32 datacenters
5	Machine ID	Supports up to 32 machines per datacenter
12	Sequence Number	4,096 IDs per machine per millisecond

How it works#

• Datacenter ID and Machine ID are configured at startup (env vars / config files) and fixed for the lifetime of the instance.
• Timestamp — the part that makes IDs time-sortable. Generated at runtime.
• Sequence Number — incremented by 1 per ID; resets to 0 each millisecond. If the counter exceeds 4,095 within the same millisecond, the generator waits until the next millisecond.
• If a machine restarts, it must use the same Machine ID to avoid collisions.

Throughput: up to 4,096 IDs per machine per millisecond = ~4M IDs/sec per machine. 32 machines per datacenter × 32 datacenters = 1,024 machines globally.

---

Follow-Ups#

1. Clock Synchronization#

Snowflake assumes all servers have the same clock. With multiple cores or machines, clock drift is real.

Solution: Use NTP for clock synchronisation. If a machine's clock drifts backward, it must wait until the clock catches up before generating new IDs.

2. Section Length Tuning#

Application type	Trade-off	Approach
Low-concurrency, long-lived	Don't need millions of IDs/ms	Fewer sequence bits, more timestamp bits → IDs valid for centuries
High-concurrency (Twitter, TikTok)	Need thousands of IDs/ms	More sequence bits (12–14) → shorter lifespan (~50–70 years, acceptable)

3. Machine Failures#

• On restart, the machine must use the same Machine ID.
• If permanently decommissioned, the Machine ID can be reused after a safe period (after the maximum timestamp duration has elapsed).

4. High Availability#

Since ID generation is mission-critical, deploy multiple instances behind a load balancer.

5. Choosing the Right ID Structure#

Criteria	UUID v4	Hash (MD5/SHA-1)	Snowflake	ULID	Sharded DB Auto-Increment
Uniqueness	✅ Very high (128-bit)	✅ Deterministic	✅ Guaranteed	✅ Very high	✅ Within shard
Time ordering	❌ None	❌ None	✅ Strong	✅ Strong	✅ Weak (shard-based)
Size	128-bit	128–160-bit	64-bit ✅	128-bit	64-bit ✅
Compact	❌ Long string	❌ Long string	✅ int64	❌ 26 chars	✅ int64
Coordination	None	None	Unique machine IDs	None	Shard offsets
Best Use Cases	Session IDs, cache keys, security tokens	File deduplication, content IDs	Tweet IDs, orders, events, logs	DB keys, distributed logs	Legacy/small-scale sharding
