Designing an Email Service

An email service enables users to register, authenticate, send and receive emails (with attachments), search their inbox, tag messages, and manage contacts and groups — all while operating at scale across millions of users.

Features Overview#

The email service covers the following key capabilities:

1. Registering a user
2. Login (2-factor authentication)
3. Profile creation
4. User preference management
5. Sending/receiving emails (with attachments)
6. Searching emails
7. Tagging emails (automatic & manual)
8. Spam and virus detection
9. Contacts and groups

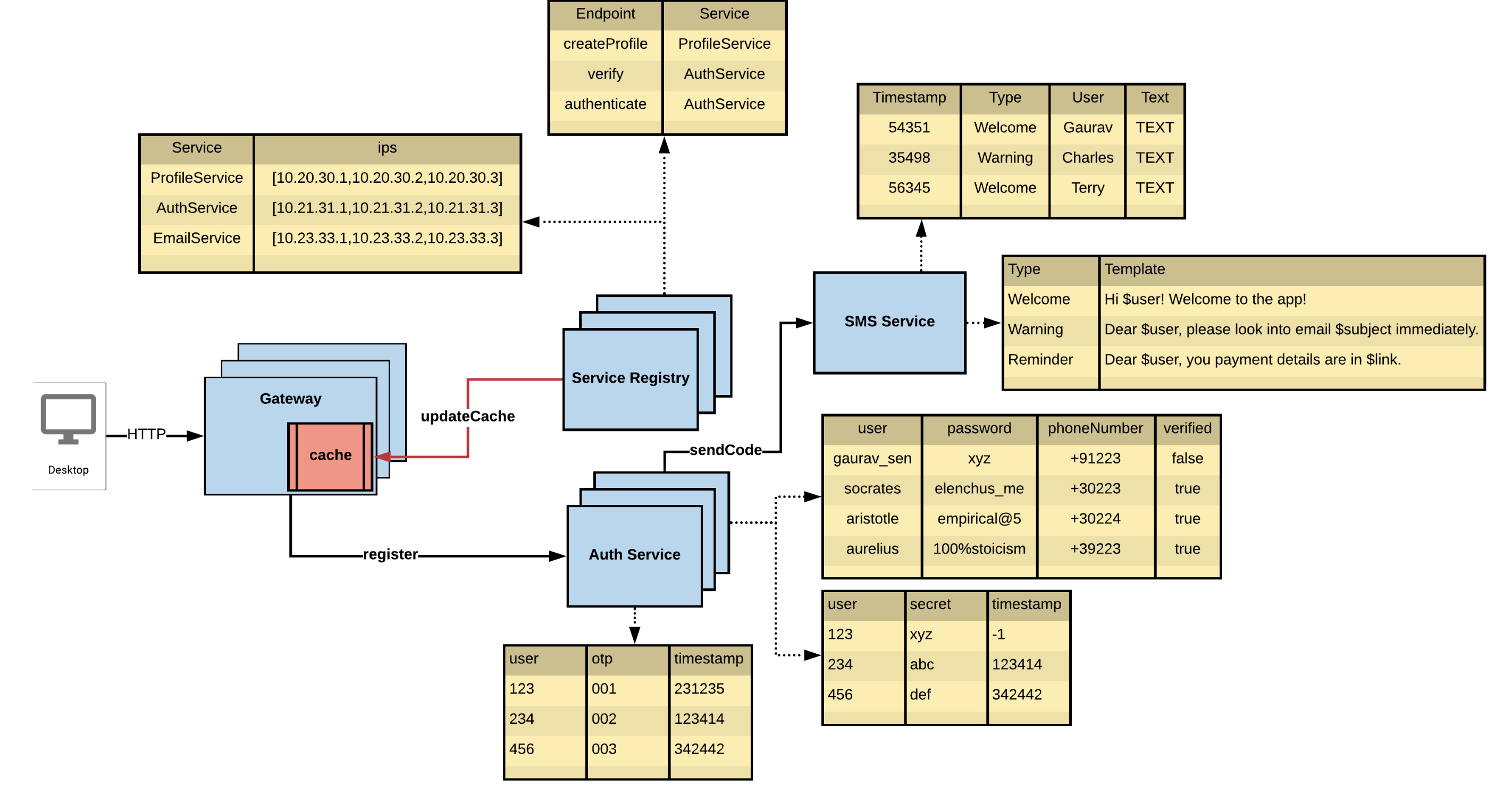

Step 1: Service Registration and Proxies#

Desktop to Gateway#

• Client uses HTTP with DNS resolution to locate the Gateway.
• Desktop → DNS (www.xyz.com) → Gateway IP

Gateway (Proxy)#

• Maintains a local cache of service mappings fetched from the Service Registry.
• Routes requests to the correct service IP based on the endpoint.
• Reduces repeated registry lookups on each request.

Service Registry#

• Stores service mappings (e.g., createProfile → ProfileService).
• Contains IPs for: ProfileService, AuthService, EmailService.
• Uses server-side service discovery — the Gateway queries the registry on behalf of clients.

Auth Service#

• Handles user authentication and OTP verification.
• Sends OTP via sendCode to the SMS Service.
• Stores OTPs with timestamps in the Session Table.
• On success, generates a secret token stored per user for stateless session management.

SMS Service#

• Sends templated messages: Welcome, Warning, Reminder, OTP.
• Stores all sent messages (timestamp, type, user, text).

Service Discovery Comparison#

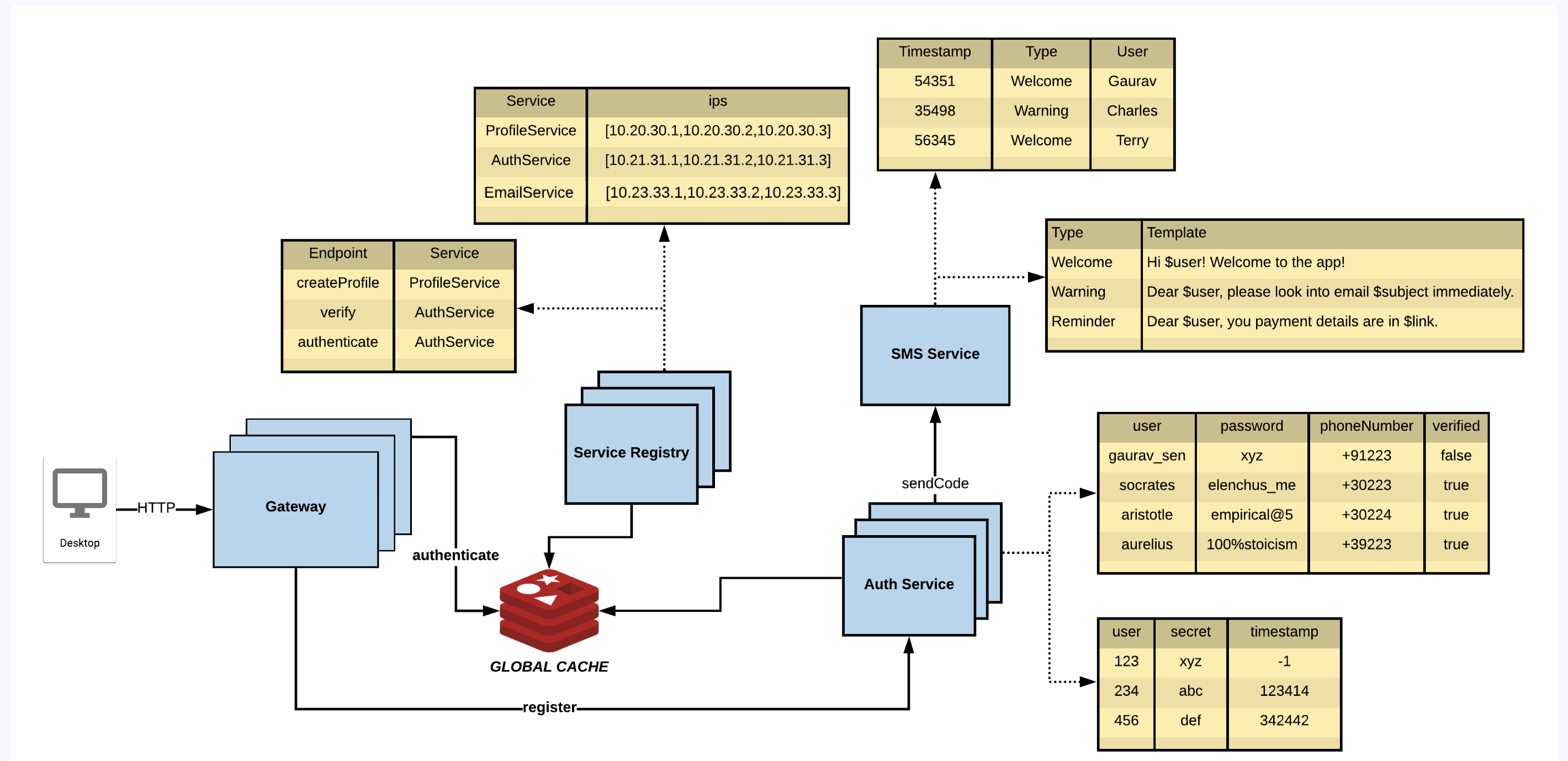

Step 2: Authentication and Global Cache#

Secure Authentication for API Calls#

• All API calls require authorization — unauthorized access is denied.
• Passwords in cookies are not recommended due to security risks.
• Instead, use JWT tokens or auth secrets stored in localStorage or HttpOnly cookies.
• Tokens are sent with each API request for authentication.

Auth Flow (Single Session)#

1. User logs in → request goes to Auth Service.
2. Auth Service generates and sends a verification code (2FA).
3. User enters code for 2-step authentication.
4. On success, Auth Service:
   • Stores a new auth secret/token.
   • Returns the token to the client for future API calls.

Problem: Gateway → Auth Service on Every Request#

• Validating tokens on every request causes frequent network calls from Gateway to Auth Service.
• This adds latency, load on auth service, and network overhead.

Solution: Cache Auth Secrets in Gateway#

• Gateway maintains a local cache of user tokens/secrets for quick validation.
• Reduces dependency on Auth Service for every request.

Keeping the Cache Updated#

• A Message Queue (MQ) pushes auth updates (token revocations, refreshes) to the Gateway.
• Ensures real-time sync across all gateway instances.

Challenges with Local Cache at Gateway#

• Gateway becomes responsible for memory allocation, cleanup, event handling (token expiry), and update fanout across all instances.
• Higher complexity and resource consumption per gateway.

Alternative: Global Cache#

• Use a centralized cache like Redis or Memcached.
• Pros: Centralized control, less per-gateway memory use.
• Cons: Requires a network call on every auth check.

Best-of-Both: Sidecar Pattern#

Deploy a sidecar proxy alongside each gateway instance:

• Handles authentication, local caching, and syncing with the global cache.
• Reduces gateway responsibilities — keeps the system modular and scalable.
• A sidecar is a helper component running alongside the main service in the same pod or host, without modifying the main service code.

Auth Strategy Summary#

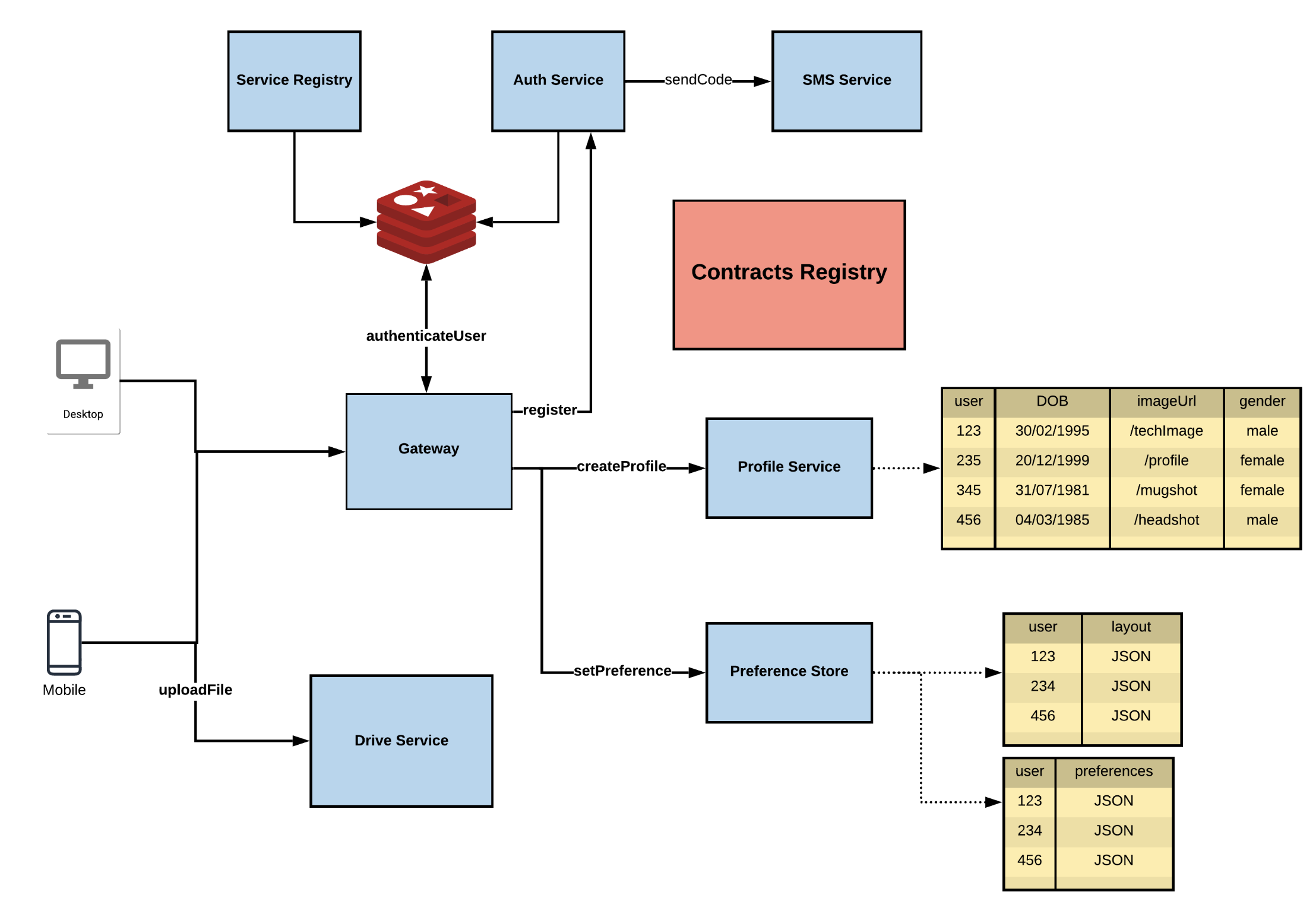

Step 3: API Contracts and Versioning#

What Are API Contracts?#

• API Contracts define the structure and format of JSON data exchanged between services.
• They ensure all services speak the same language, enabling interoperability.

Contract Ownership and Usage#

• The Service defines and maintains its contract.
• The Gateway uses the contract to construct/parse request and response objects.
• Contracts are not gateway-specific — they are common to all interacting services.

Where Are Contracts Stored?#

• Contracts are stored in a Contract Registry (separate from the Service Registry).
• Mixing contract responsibilities into the Service Registry makes it heavy and less modular.

Push vs Pull for Contract Updates#

Contract Best Practices#

• Contracts should be language agnostic and backward compatible.
• Use versioning (v1, v2, …) to maintain multiple versions concurrently without breaking old clients.

User Preference Store#

Stores user-specific data:

• UI layout preferences: { userId: layoutJSON }
• Email handling preferences: default folder, spam handling logic, custom filters.

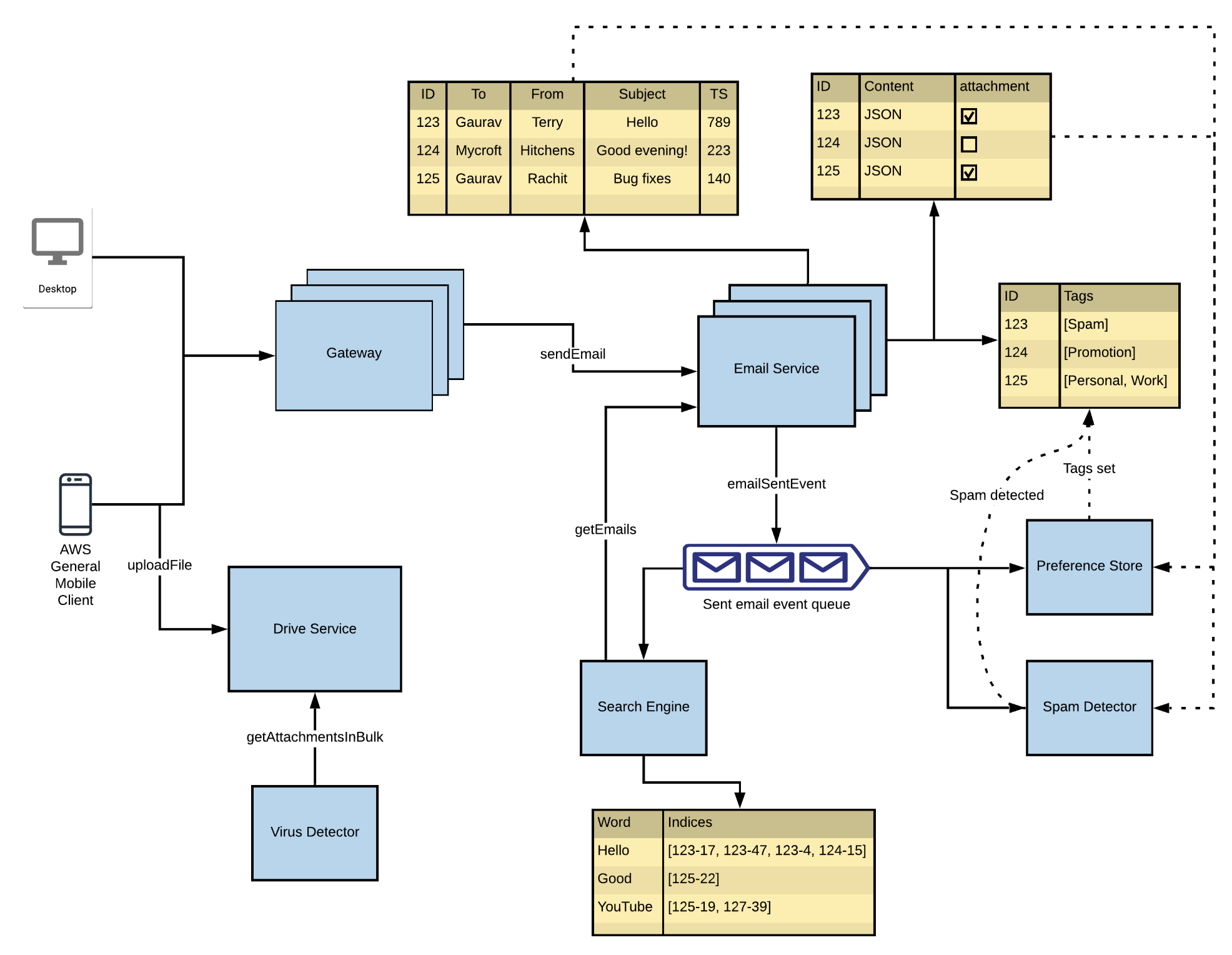

Step 4: Sending, Tagging, and Searching Emails#

Sending Emails#

Flow:

1. User (Desktop/Mobile) initiates a sendEmail request via the Gateway.
2. Gateway forwards the request to the Email Service.
3. Email Service stores:
   • Email metadata: ID, To, From, Subject, Timestamp.
   • Email content: Content, Attachments.
4. If attachments exist, files are uploaded through the Drive Service and scanned by the Virus Detector.
5. After processing, an emailSentEvent is pushed into the Sent Email Event Queue (e.g., Kafka).

Tagging Emails#

Automatic Tagging (triggered by emailSentEvent):

• Spam Detector scans email content and sets tags: [Spam], [Promotion], [Work], etc.
• Tags are stored in the Preference Store mapped to the Email ID.

Manual Tagging:

• Users tag emails via UI.
• Tags are updated in the Preference Store.

Searching Emails#

Flow:

1. User triggers getEmails via the Gateway.
2. Request goes to the Search Engine.
3. Search Engine maintains an inverted index — maps words to email ID + position:
   json

   {
     "Hello": ["123-17", "123-47", "124-15"],
     "YouTube": ["125-19", "127-39"]
   }


4. Email Service fetches metadata and content for the retrieved IDs.
5. Attachments (if needed) are fetched using getAttachmentsInBulk from the Drive Service.

Email Operations Summary#

Preference Store#

The Preference Store is a central service/database storing user-specific settings and preferences in JSON format.

Example flows:

1. User sends email → Email Service emits emailSentEvent → Spam Detector scans → tags stored in Preference Store.
2. User logs in on mobile → Gateway fetches UI layout from Preference Store → app renders accordingly.

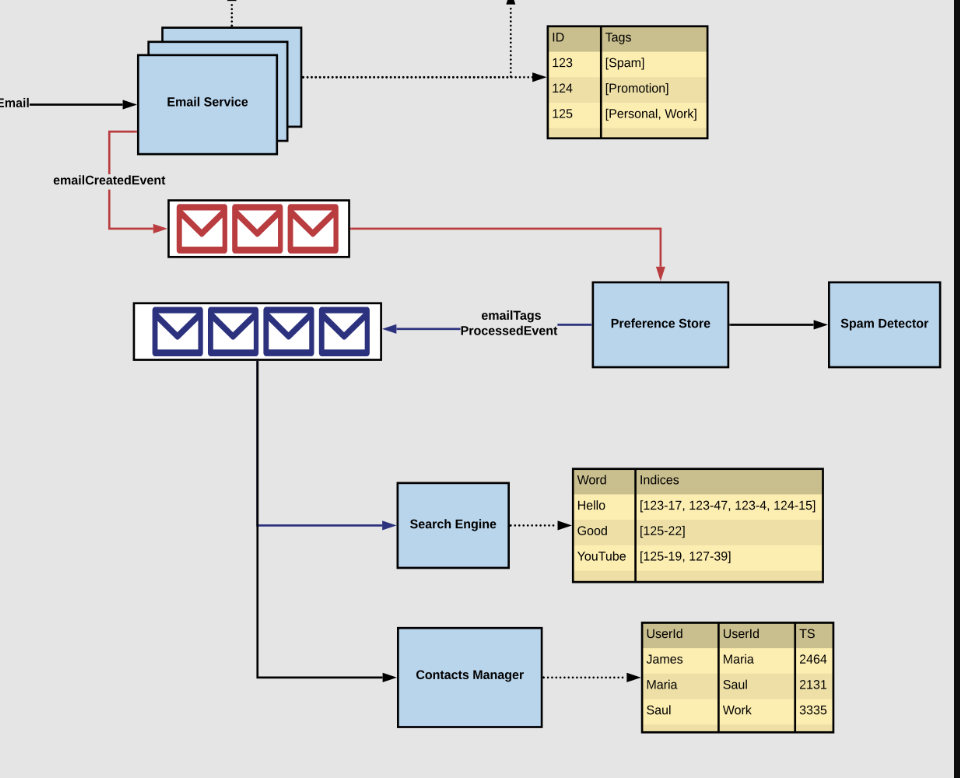

Step 5: Contacts and Groups#

Refined Queue Consumers#

After emails flow through the event queue, three consumers process them:

A. Search Engine

• Consumes from the Refined Queue.
• Builds and maintains the inverted index for full-text search.

B. Contacts Manager

• Parses sender/receiver fields and builds a contact graph:
  James → Maria (TS: 2464)
  Maria → Saul (TS: 2131)
  Saul → Work (TS: 3335)


C. Groups Manager

• Maintains group-to-user-ID mappings:
  json

  {
    "workTeam": ["James", "Maria", "Saul"],
    "friends": ["Divya", "Terry", "Rachit"]
  }


• Enables group-based sending, group tagging, and auto-suggestions.

External Email Integration#

To support cross-platform communication (e.g., Gmail ↔ Yahoo):

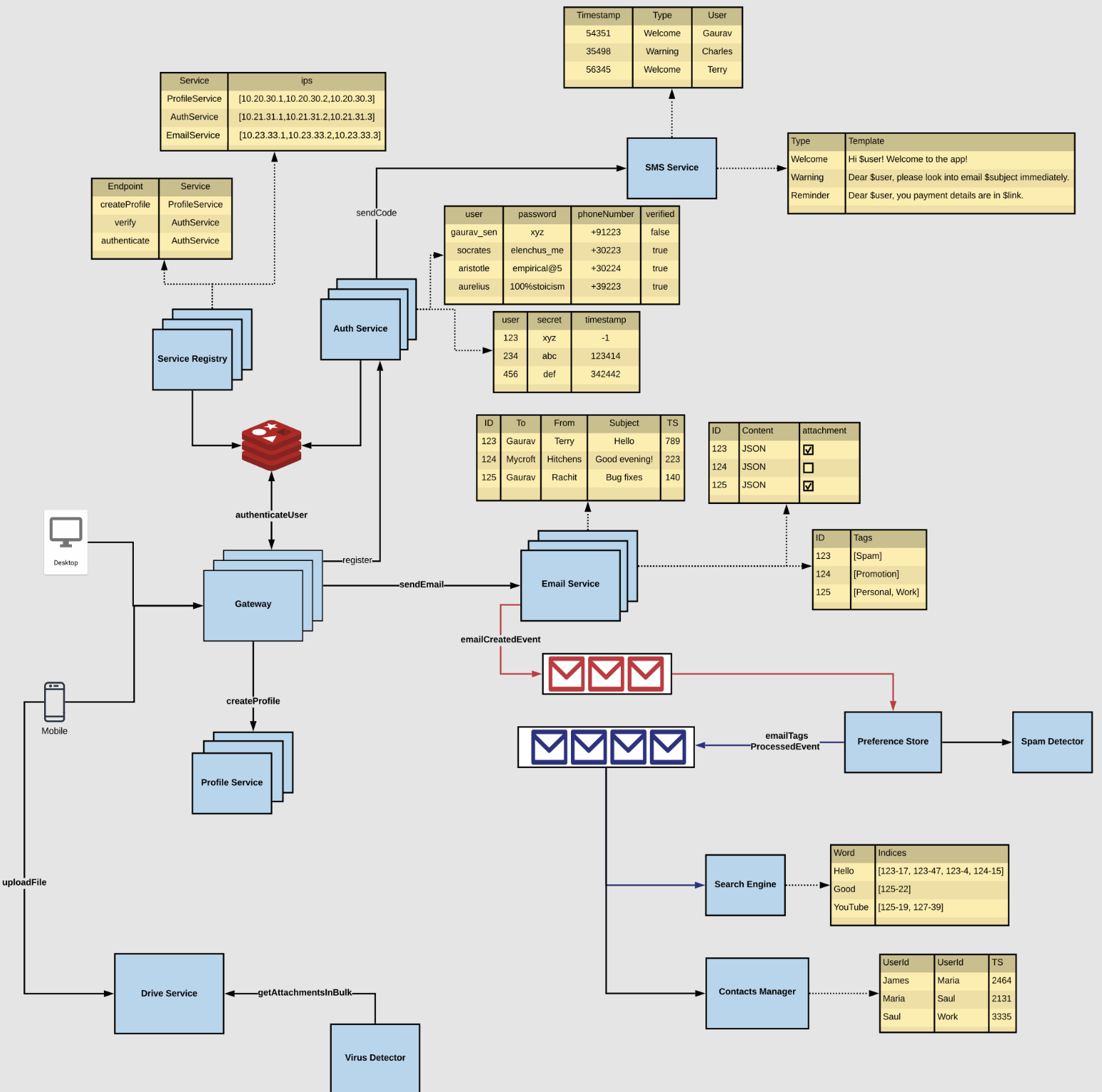

Step 6: Final Architecture#

Core Services and Components#

Data Flow Summary#

1. User → Gateway → Auth/Profile Services
2. Auth Service → SMS Service (OTP for verification)
3. Email Service → stores email → emits emailCreatedEvent
4. emailCreatedEvent consumed by:
   - Spam Detector → tags → Preference Store
   - Search Engine → inverted index
   - Contacts Manager → contact graph
5. File attachments → Drive Service → Virus Detector
6. External emails ↔ SMTP (outbound) / IMAP Adapter (inbound)
