Design a Rate Limiter

Rate limiters are one of those components that every large-scale system quietly depends on. They stop a single bad actor from taking down your API, enforce fair usage across thousands of clients, and protect your backend from cascading overload. This guide walks through the full design — from scoping requirements all the way to handling race conditions in a distributed setup.

Why Do We Need a Rate Limiter?#

• Prevent resource starvation from Denial of Service (DoS) / DDoS attacks
• Ensure fair usage across multiple clients — no single user hogs capacity
• Reduce costs — limit expensive downstream calls (third-party APIs, ML inference, etc.)
• Protect backend stability — prevent servers from being overwhelmed

Step 1: Requirements#

Clarifying Questions#

Functional#

1. What should the rate limiter protect — a single API endpoint, multiple endpoints, or the entire service?
2. What is the limiting dimension — per user, per IP, per API key, or globally?
3. What granularity of time window — per second, per minute, per hour, or sliding windows?
4. What happens when the limit is exceeded — reject immediately (HTTP 429), queue the request, or throttle (slow it down)?
5. Should different clients or tiers have different limits (e.g., free = 100/min, paid = 1000/min)?
6. Should multiple rules be composable — e.g., 10/sec AND 500/min on the same endpoint?
7. Which algorithms are acceptable — Fixed Window, Sliding Window, Token Bucket, Leaky Bucket?

Non-Functional#

1. Is this in-process (single server, single JVM) or distributed (shared state across multiple servers)?
2. Expected throughput — how many requests per second must the rate limiter handle?
3. Strict accuracy or approximate is acceptable (e.g., are small boundary-burst overruns OK)?
4. Should the rate limiter be transparent middleware (every request passes through it) or explicitly called per handler?
5. Persistence — does the counter need to survive a server restart?
6. Should the response include headers like X-RateLimit-Remaining and Retry-After for clients to self-throttle?

Functional Requirements#

Non-Functional Requirements#

Design Scope#

Before jumping into algorithms, clarify constraints with your interviewer:

Step 2: High-Level Design#

Where to Place the Rate Limiter?#

This is the first architectural decision. There are four placements to discuss:

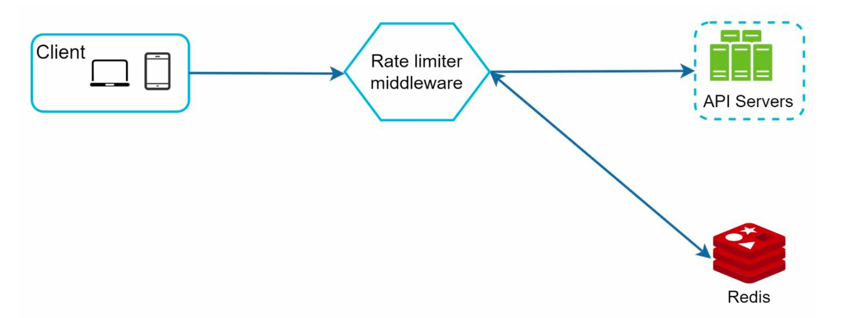

For this design: we use a hybrid — an API Gateway as middleware backed by Redis for distributed counters.

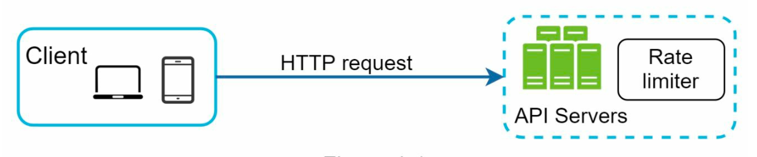

Server-Side Rate Limiting#

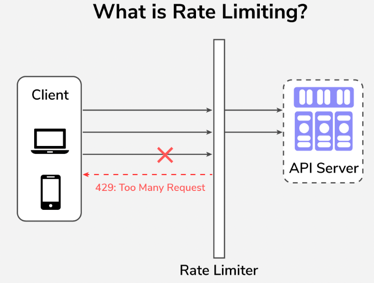

Middleware (API Gateway) Rate Limiting#

More Guidelines#

• Placement depends on your tech stack, existing infrastructure, and traffic patterns — there's no universal answer.
• If you already have a microservice architecture with an API Gateway (Kong, Envoy, AWS API Gateway), placing the rate limiter there is the natural choice.
• Building your own rate limiter is complex. Consider battle-tested solutions: Envoy, NGINX, Kong, or cloud-native throttling.
• The choice of algorithm matters — each has different memory, accuracy, and burst-handling trade-offs (see next section).

Step 3: Rate Limiting Algorithms#

1. Token Bucket 🪣#

Used by Amazon API Gateway and Stripe.

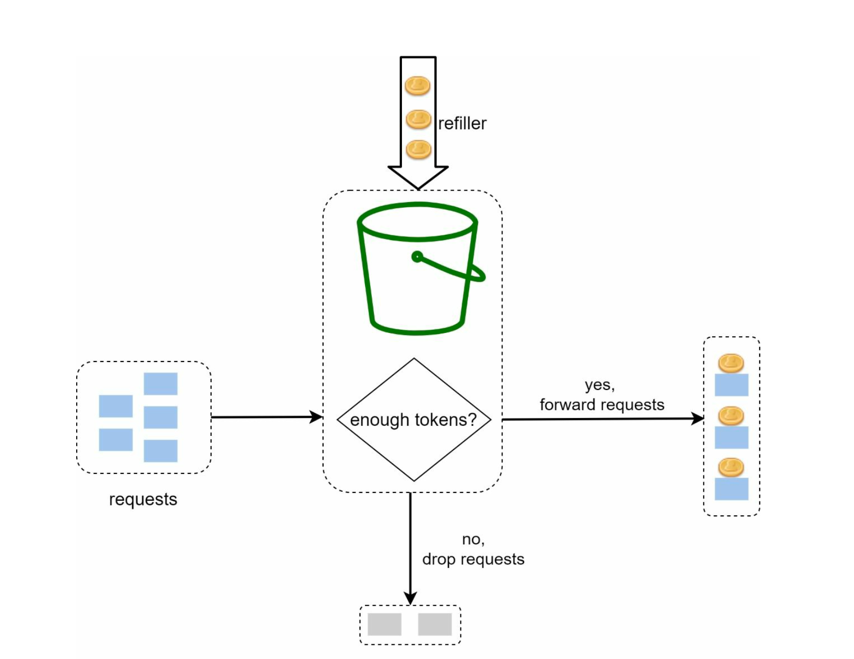

Think of a bucket that holds tokens. Each request consumes one token. Tokens are refilled at a fixed rate. If the bucket is empty, the request is rejected.

Example: B=10, R=5/sec. At t=0, 10 requests arrive → all pass (T: 10→0). At t=1s, 5 tokens refilled. 20 more arrive → 5 allowed, 15 rejected.

FAQs#

Interview Answer: Token Bucket is great for APIs where short bursts are acceptable. Each client has a bucket in Redis; tokens are added at rate R. A request is allowed if tokens > 0, otherwise rejected. Atomic Redis INCR or Lua scripting prevents race conditions.

What Do We Store in Redis?#

Two fields per client key, stored as a Redis hash:

HSET rate_limit:{user_id}   tokens 9   last_refill 1726617600000

Why last_refill and not a TTL-based reset?

Tokens aren't refilled on a fixed schedule — they're calculated lazily on each request:

elapsed    = now - last_refill
new_tokens = elapsed × refill_rate
tokens     = min(bucket_capacity, tokens + new_tokens)

No background job needed. Tokens accumulate proportionally to however much time has passed since the last request.

The full check — must be a Lua script (atomic):

local key         = KEYS[1]
local capacity    = tonumber(ARGV[1])
local refill_rate = tonumber(ARGV[2])   -- tokens per ms
local now         = tonumber(ARGV[3])

local data        = redis.call("HMGET", key, "tokens", "last_refill")
local tokens      = tonumber(data[1]) or capacity
local last_refill = tonumber(data[2]) or now

local elapsed = now - last_refill
tokens = math.min(capacity, tokens + elapsed * refill_rate)

if tokens >= 1 then
    tokens = tokens - 1
    redis.call("HMSET", key, "tokens", tokens, "last_refill", now)
    return 1   -- allowed
else
    redis.call("HMSET", key, "tokens", tokens, "last_refill", now)
    return 0   -- rejected
end

Why Lua and not a plain GET + SET? Two concurrent requests could both read tokens = 1, both decide to allow, and both write back tokens = 0 — letting two requests through when only one token existed. The Lua script runs atomically on the Redis server, so the read-modify-write is never interrupted.

Cleanup — set EXPIRE rate_limit:{user_id} <window> so stale keys for inactive clients are automatically evicted.

2. Leaky Bucket 🚰#

Used by Shopify.

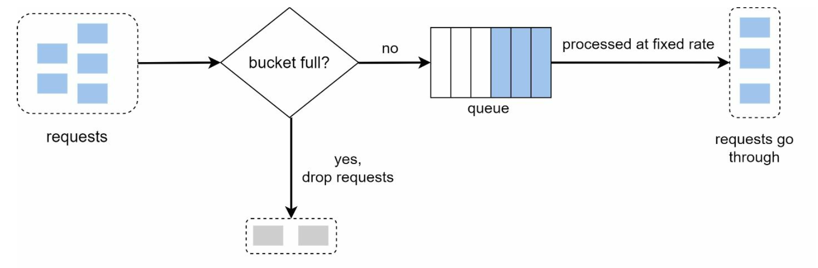

Requests enter a bucket (queue) and are processed at a fixed constant rate. If the bucket overflows, new requests are dropped.

Example: B=10, R=2/sec. 12 requests arrive — first 10 queued, 2 dropped. Requests exit at 2/sec.

Analogy: A funnel with a small hole. Pour water fast, it drips out at a constant rate. Overflow = dropped requests.

FAQs#

What Do We Store in Redis?#

Two implementation options with different state:

Option A — True Queue (stores actual requests)

LPUSH  rate_limit:{user_id}  {timestamp}   ← enqueue
LLEN   rate_limit:{user_id}                ← check if full

A separate worker pops from the other end at rate R and processes requests. State = the queue itself. Problem: requires a background worker per client — doesn't scale well in a distributed system.

Option B — Counter-based (lazy drain) — preferred in practice

Same lazy approach as Token Bucket but draining instead of filling:

HSET rate_limit:{user_id}   queue_size 3   last_leak 1726617600000

On each request:

elapsed    = now - last_leak
leaked_out = elapsed × leak_rate
queue_size = max(0, queue_size - leaked_out)

if queue_size < capacity → accept (queue_size++)
else                     → drop (HTTP 429)

Lua script (atomic — same reason as Token Bucket):

local key       = KEYS[1]
local capacity  = tonumber(ARGV[1])
local leak_rate = tonumber(ARGV[2])   -- requests per ms
local now       = tonumber(ARGV[3])

local data       = redis.call("HMGET", key, "queue_size", "last_leak")
local queue_size = tonumber(data[1]) or 0
local last_leak  = tonumber(data[2]) or now

local elapsed  = now - last_leak
queue_size = math.max(0, queue_size - elapsed * leak_rate)

if queue_size < capacity then
    queue_size = queue_size + 1
    redis.call("HMSET", key, "queue_size", queue_size, "last_leak", now)
    return 1   -- accepted
else
    redis.call("HMSET", key, "queue_size", queue_size, "last_leak", now)
    return 0   -- dropped
end

Comparison with Token Bucket:

3. Fixed Window Counter 🗓️#

Time is divided into fixed intervals. A counter tracks requests in the current window. Requests are allowed until the counter hits the limit.

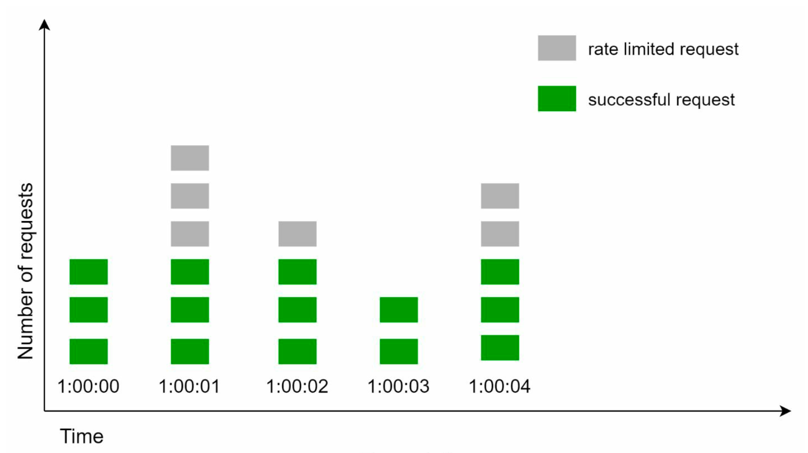

Critical flaw — boundary burst problem: If limit = 5/min, a user can send 5 requests at 12:00:59 and 5 more at 12:01:00 → 10 requests pass in just 2 seconds.

W = 1 second, L = 3 requests/second

FAQs#

What Do We Store in Redis?#

Just one key per client per window — the key itself encodes the window:

SET rate_limit:{user_id}:{window_id}   3   EX 60

No last_refill or last_leak needed — when the window rolls over, {window_id} changes and a brand new key starts at 0.

On each request (INCR is atomic — no Lua script needed):

window_id = floor(now_seconds / window_size_seconds)
key       = rate_limit:{user_id}:{window_id}

count = INCR key
if count == 1: EXPIRE key window_size   ← set TTL only on first request
if count <= limit: allow
else: reject (HTTP 429)

Why EXPIRE only when count == 1? Setting TTL on every INCR would keep resetting the expiry — the window would never close while traffic is active. Setting it once on the first request is enough.

The boundary burst flaw — visualised:

window_id=100 (12:00:00–12:00:59)   window_id=101 (12:01:00–12:01:59)
      [limit=5]                             [limit=5]

  ... 5 requests at 12:00:59  |  5 requests at 12:01:00 ...
                               ↑
               10 requests in 1 second — both windows allow them

Two windows, two fresh counters — neither sees more than 5, but 10 slip through in a 1-second span. This is the core weakness Sliding Window Counter fixes.

4. Sliding Window Log 📋#

Instead of resetting counters, the system logs timestamps of each request. A request is allowed if the count of timestamps within the last W seconds is below the limit.

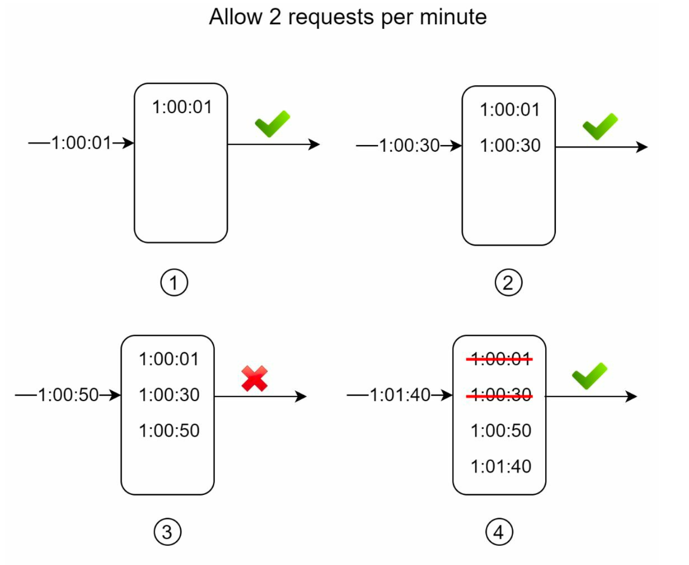

Example: W=1min, L=2. Requests at 1:00:01 and 1:00:30 → both allowed (2 in window). Request at 1:00:50 → rejected (3rd in window). At 1:01:40 → first two timestamps expire → next request allowed again.

W = 1 min, L = 2

Analogy: A movie theatre allows only 100 people per hour. Security checks the log of entries in the last 60 minutes — if < 100, you can enter.

FAQs#

What Do We Store in Redis?#

A Sorted Set per client — score = timestamp, member = timestamp (or a unique request ID):

ZADD rate_limit:{user_id}  1726617600100  1726617600100
ZADD rate_limit:{user_id}  1726617600300  1726617600300

On each request (Lua script for atomicity):

local key        = KEYS[1]
local now        = tonumber(ARGV[1])
local window_ms  = tonumber(ARGV[2])
local limit      = tonumber(ARGV[3])

-- prune timestamps older than the window
redis.call("ZREMRANGEBYSCORE", key, 0, now - window_ms)

local count = redis.call("ZCARD", key)

if count < limit then
    redis.call("ZADD", key, now, now)
    redis.call("EXPIRE", key, math.ceil(window_ms / 1000))
    return 1   -- allowed
else
    return 0   -- rejected
end

Why a Sorted Set and not a List? The score (timestamp) lets Redis prune old entries with a single range-delete command (ZREMRANGEBYSCORE). A List has no index on value — you'd have to scan from the front manually.

Memory cost: one entry per request in the window — O(N). This is the trade-off for eliminating boundary bursts entirely.

5. Sliding Window Counter 🔢#

A practical improvement over Fixed Window. Uses two windows (current + previous) and calculates an effective count proportionally based on how far into the current window we are.

Example: W=1min, L=5. At 12:00:30 (30s into window), previous window had 4 requests, current has 2.
effective_count = 2 + (4 × 0.5) = 4 → request allowed (≤5).

FAQs#

What Do We Store in Redis?#

Two keys — one for the current window, one for the previous — same shape as Fixed Window Counter:

rate_limit:{user_id}:{window_id}       ← current window count
rate_limit:{user_id}:{window_id - 1}   ← previous window count

On each request:

window_id        = floor(now / W)
elapsed_fraction = (now % W) / W

curr_count = GET rate_limit:{user_id}:{window_id}       or 0
prev_count = GET rate_limit:{user_id}:{window_id - 1}   or 0

effective_count = curr_count + prev_count × (1 - elapsed_fraction)

if effective_count < limit:
    INCR rate_limit:{user_id}:{window_id}
    EXPIRE rate_limit:{user_id}:{window_id}  2*W   ← keep for one extra window
    allow
else:
    reject (HTTP 429)

Why EXPIRE = 2×W? The previous window's key must still be readable during the entire next window. Setting TTL to 2×W ensures it survives long enough to be used in the weighted formula, then auto-expires.

Comparison across all algorithms:

Algorithm Summary#

Interview tip: When asked which algorithm to use, default to Token Bucket for most APIs. Mention Sliding Window Log for strict accuracy requirements, and Sliding Window Counter when memory efficiency matters in a distributed Redis setup.

Step 4: Deep Dive#

Where to Store Counters?#

Why Redis specifically?

• INCR — atomically increments a counter (creates it at 0 if missing)
• EXPIRE — sets a TTL so counters auto-reset after the window expires
• Supports Lua scripting for multi-step atomic operations

Request Flow#

1. Client sends a request → hits the Rate Limiter Middleware.
2. Middleware fetches the counter from the Redis bucket for this client/IP/endpoint.
3. If limit not reached: forward request to API servers, increment counter in Redis.
4. If limit reached: return 429 Too Many Requests, drop or queue the request.

Rate Limiting Rules#

Rules define the actual limits. They're stored on disk (config files or a rules database) and cached in memory for fast access. Workers periodically pull updated rules into the cache.

Example rules (YAML config):

# Allow max 5 marketing messages per day
domain: messaging
descriptors:
  - key: message_type
    Value: marketing
    rate_limit:
      unit: day
      requests_per_unit: 5

# Allow max 5 login attempts per minute
domain: auth
descriptors:
  - key: auth_type
    Value: login
    rate_limit:
      unit: minute
      requests_per_unit: 5

Handling Rate-Limited Requests#

When a request is rejected:

• Return HTTP 429 Too Many Requests (or 503 Service Unavailable depending on use case)
• Include these headers to help clients self-regulate:

• Optionally enqueue the rejected request for later processing (soft limit), or drop it (hard limit).

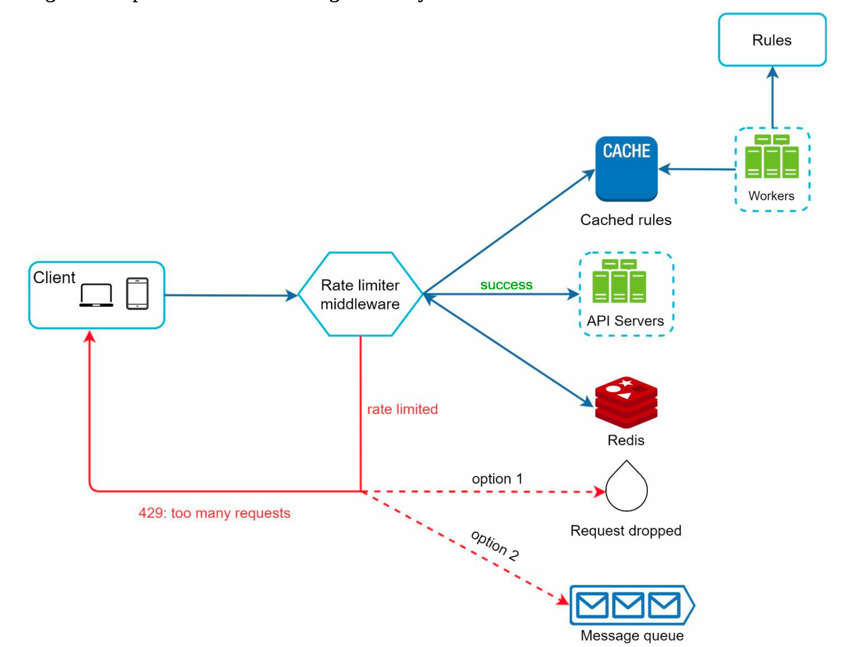

Detailed Design#

The full flow:

1. Rules are stored on disk; worker processes pull and cache them.
2. Client request arrives → Rate Limiter Middleware loads rules from cache.
3. Middleware fetches counters + last request timestamp from Redis.
4. Decision:
   • Not rate-limited → forward to API servers, update counter in Redis.
   • Rate-limited → return 429 to client; drop or forward to queue.

Step 5: Distributed System Challenges#

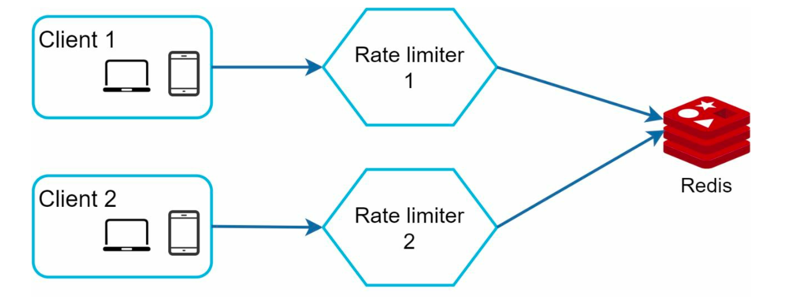

Scaling to millions of users means running multiple rate limiter servers. Two challenges emerge:

Race Condition#

The read-modify-write cycle on Redis is not inherently atomic:

Request A reads counter = 4  |  Request B reads counter = 4
Both check: 4 < 5 → OK       |  Both check: 4 < 5 → OK
Both write back: 5            |  Both write back: 5

Both requests pass, but the counter should be 6. One update is silently lost.

Solutions:

1. Atomic Redis INCR — increment and get the new value in one command; no separate read step
2. Redis Lua scripting — bundle the check + increment into a single atomic server-side script
3. Redis sorted sets — store request timestamps; prune and count in a single atomic operation (for Sliding Window Log)

Interview Answer: The race condition stems from non-atomic read-modify-write in a concurrent environment. Fix: use Redis INCR (atomic) or Lua scripting to make check + increment a single step.

Synchronization#

Multiple rate limiter servers, each with their own local counters, will each think the user has only made n requests — allowing up to n × servers requests total.

Load Balancer
    ├── RateLimiter S1 (counter=2) ← User A Request #1
    ├── RateLimiter S2 (counter=2) ← User A Request #2
    └── RateLimiter S3 (counter=2) ← User A Request #3

If limit = 5 but 3 servers each allow 5 requests locally, the user can send 15 requests.

Solutions:

For most systems: centralized Redis with INCR + optional sharding by user ID is the right answer.

Performance Considerations#

• Multi-data center setup: Users far from your data center experience high latency. Deploy rate limiters geographically close to users.
• Eventual consistency: In a multi-region setup, accept that counters may drift slightly across regions. Use eventual consistency rather than strong consistency for non-critical limits.
• Local caching of rules: Rate limiting rules rarely change. Cache them in memory with a short TTL to avoid rule-store lookups on every request.

Monitoring#

After deployment, validate effectiveness:

• Is the algorithm working? Are the right requests getting throttled? Too aggressive / too lenient?
• Are the rules effective? Does throttling actually reduce load on backend services?
• Alert on anomalies: Sudden spikes in 429 responses may indicate a traffic surge or a misconfigured rule.

Follow-Up Design Dimensions#

Limit Strictness#

Rate Limiting Granularity#

Rate Limiting Layer#

Client-Facing Headers#

Always expose rate limit state to API consumers:

HTTP/1.1 429 Too Many Requests
X-RateLimit-Limit: 100
X-RateLimit-Remaining: 0
X-RateLimit-Retry-After: 30

This lets well-behaved clients self-throttle and reduces retry storms.

Real-World References#

• Amazon API Gateway — Token Bucket throttling
• Stripe's Rate Limiting Strategy
• Shopify's API Rate Limiting (Leaky Bucket)
