Design a Notification System

A notification system sends notifications to users through various channels — push notifications, email, and SMS — triggered by services or scheduled on the server side.

---

Step 1: Requirements#

Clarifying Questions#

Question	Answer
Notification types	Push (iOS + Android), Email, SMS
Real-time or batch?	Soft real-time — deliver ASAP; slight delays acceptable
Supported platforms	iOS, Android, web browsers
Triggered by	Client applications or server-side schedulers
Volume	10M mobile push/day, 1M SMS/day, 5M emails/day

---

Functional Requirements#

#	Requirement
1	Send notifications via multiple channels: iOS push, Android push, SMS, email
2	Notifications triggered by services (e.g. order placed, friend request) or scheduled server-side
3	Support multiple platforms: iOS, Android, web (desktop/laptop)
4	Collect and store user contact info: email, phone number, device tokens
5	Per-user notification preferences: opt-in/opt-out per channel and notification type
6	Reusable notification templates stored in DB
7	Event tracking: open rate, click rate, delivery status
8	Retry failed notifications; alert if problem persists

Non-Functional Requirements#

#	Requirement	Detail
1	Soft real-time	Deliver ASAP; small delays acceptable — not strictly real-time
2	Scale	10M push/day, 5M emails/day, 1M SMS/day
3	High availability	No SPOF; notification servers must be horizontally scalable
4	Reliability	At-least-once delivery — notifications must never be silently lost
5	Idempotency	Handle duplicates on the client side using unique notification IDs
6	Extensibility	Easy to add/swap third-party providers (e.g. FCM → Jpush for China)
7	Security	Only authenticated/verified clients can trigger notifications
8	Rate limiting	Cap notifications per user to prevent spam and notification fatigue

---

Step 2: Entities#

Entity	Responsibility
User	Identity and contact details — email address, phone number
Device	A user's registered device; stores device token and platform (iOS / Android / Web)
Notification	The notification event itself — type (push/SMS/email), content/payload, status, target user, timestamp
NotificationTemplate	Reusable content blueprint for a notification type; reduces errors and keeps formatting consistent
NotificationSetting	Per-user, per-channel opt-in/out preferences; checked before every notification is sent
NotificationLog	Audit record of every dispatched notification; drives retry logic, deduplication, and event tracking (open rate, click rate)

Key relationships:

• One User has many Devices (phone + laptop + tablet)
• One User has one NotificationSetting per channel
• Each Notification references a NotificationTemplate and a target User
• Each Notification produces one NotificationLog entry per delivery attempt

---

Step 3: APIs#

Send Notification#

Internal only — accessible by verified services via appKey + appSecret. Never exposed publicly.

POST /v1/notifications

Param	Description
user_id	Target user
channel	push / sms / email
template_id	Which template to use
data	Key-value pairs to interpolate into the template

---

Contact Registration#

POST /v1/users/contact — Register or update a user's contact details (email, phone, device token).

Param	Description
user_id	The user being registered
email	Email address (verified before use)
phone	Phone number with country code (verified before use)
device_token	Unique token issued by APNs / FCM
platform	ios / android / web
auth_token	Authenticates the request

All three contact fields are optional per call — a client only sends what it has. A web browser sends email but no device token; a mobile app sends all three.

DELETE /v1/devices/{device_token} — Deregister a device on logout or uninstall.

---

Notification Preferences#

GET /v1/users/{user_id}/settings — Fetch a user's opt-in/out preferences per channel.

PUT /v1/users/{user_id}/settings — Update preferences for a specific channel or notification type.

Param	Description
channel	push / sms / email
notification_type	e.g. marketing, transactional, alerts
enabled	true / false

---

Step 4: High Level Design#

Three main concerns:

1. Types of notifications — how each channel works end-to-end
2. Contact info gathering — how we collect and store delivery addresses
3. Notification sending/receiving flow — the core pipeline

---

Types of Notifications#

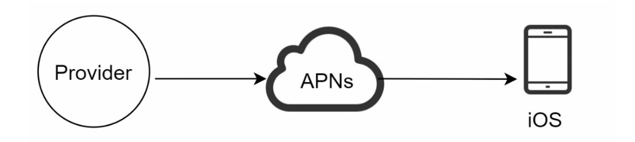

iOS Push Notification#

Three components:

Component	Role
Provider	Builds and sends requests to APNs, including device token and payload
APNs	Apple's service that routes the notification to the target device
Device	Receives and displays the notification

Android Push Notification#

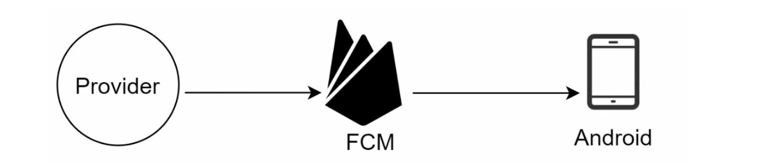

Same flow as iOS, but uses Firebase Cloud Messaging (FCM) instead of APNs.

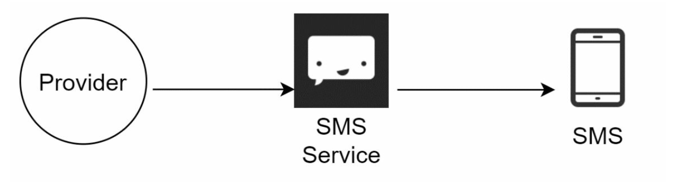

SMS#

Uses commercial services with global carrier connectivity:

Service	Architecture
Twilio	Microservices on AWS, Kafka for reliability, SIP/PSTN gateways to carriers
Nexmo	RESTful APIs, SMPP/SIP carrier connections, message brokers for delivery guarantees

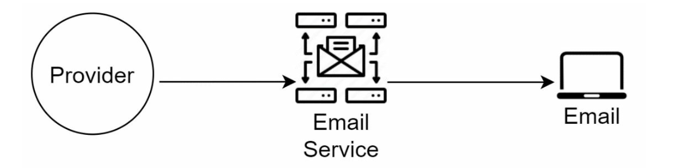

Email#

Companies typically use commercial email services:

Service	Architecture
SendGrid	Distributed delivery via Kafka/RabbitMQ, global SMTP relays
Mailchimp	Marketing automation, async campaign processing

Pattern across all channels: Provider → Third-Party Service (APNs / FCM / Twilio / SendGrid) → Device/Recipient

---

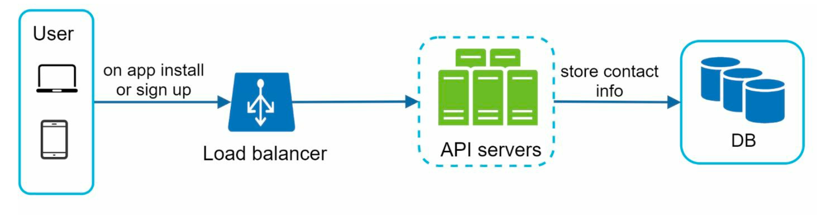

Contact Info Gathering#

To send notifications, we need to know how to reach each user. This info is collected at registration or profile update and stored securely in the database.

Data	When collected	API
Email address	User registration / profile update	POST /v1/users/contact
Phone number	User registration / profile update	POST /v1/users/contact
Device token	App install / first open	POST /v1/users/contact

• Email and phone must be verified before use.
• A user can have multiple devices — each device token is stored separately and linked to the user.
• On logout or uninstall, the device token is removed via DELETE /v1/devices/{device_token} to prevent stale-token delivery failures.

---

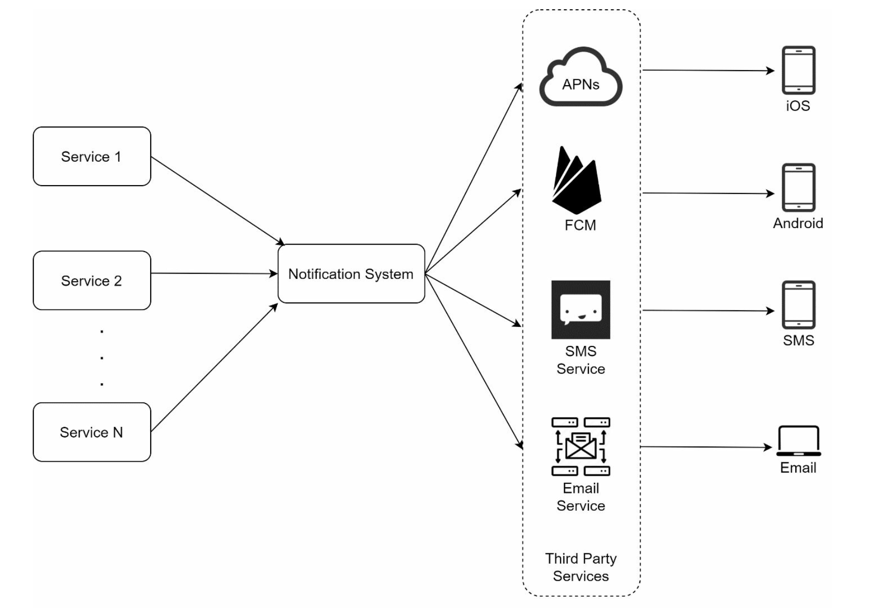

Initial Design (Single Server)#

Component	Role
Services 1–N	Trigger notifications (order service, chat service, cron jobs)
Notification System	Single server; provides APIs and builds payloads for third-party services
Third-Party Services	APNs, FCM, Twilio, SendGrid
Users	Receive notifications on their devices

Problems with the Initial Design#

Problem	Impact
Single point of failure	One notification server = one bottleneck; one crash = no notifications
Scalability	Cannot scale DB, cache, and processing components independently
Performance bottleneck	Resource-intensive processing on a single server causes delivery delays

---

Improved Design#

Three key changes from the initial design:

1. DB and Cache moved out of the notification server.
2. Multiple notification servers with auto horizontal scaling.
3. Message queues added for async processing.

Component	Role
Services 1–N	Trigger notifications via APIs
Notification Servers	Validate requests, query DB/Cache for contact info, push events to queues
Cache	Stores user info, device info, notification templates for fast access
Database	Stores contact info, notification logs, templates
Message Queues	Decouples submission from processing; one queue per channel (APNs, FCM, SMS, Email)
Workers	Pull events from queues; deliver via third-party services; scale independently
Third-Party Services	APNs, FCM, Twilio, SendGrid

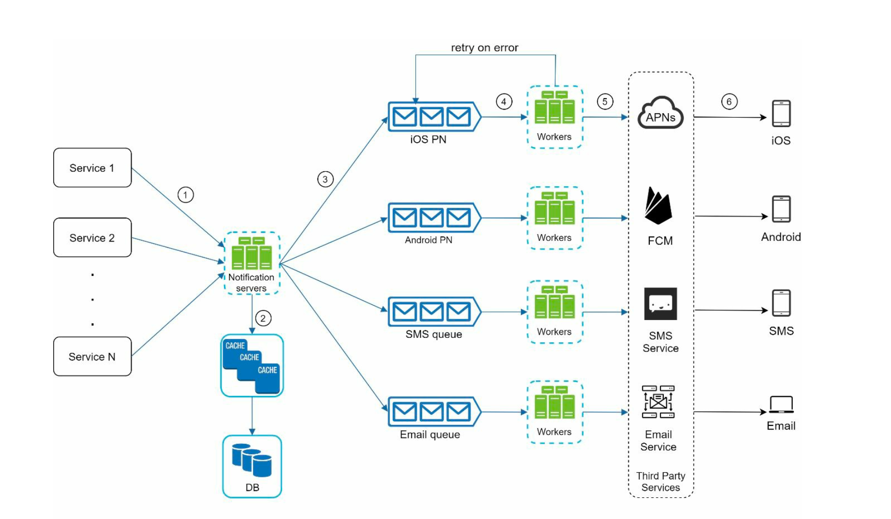

End-to-End Flow#

1. A service calls Notification Server APIs.
2. Notification servers fetch user metadata (device token, contact info) from cache or DB.
3. Event pushed to the appropriate queue (iOS queue → APNs, etc.).
4. Workers pull events from queues.
5. Workers deliver via third-party services.
6. Third-party services push to user devices.

---

Step 5: Detailed Design#

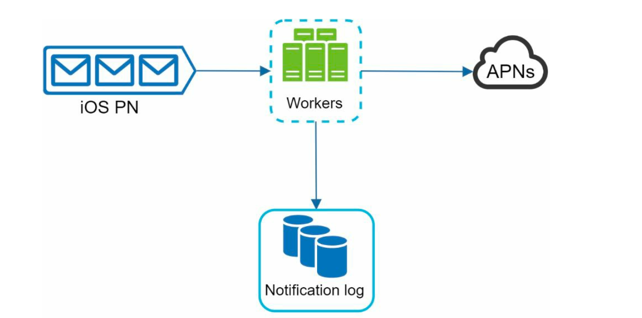

Reliability#

How to prevent data loss?

Notification events can be delayed or reordered — but must never be lost. Notification data is persisted to DB before processing, and a retry mechanism handles failures.

Will users receive duplicate notifications?

Yes — distributed systems cannot guarantee exactly-once delivery. Mitigate on the client side:

1. Each notification carries a unique ID.
2. On arrival, client checks a local cache for the ID.
3. If seen before → discard. Otherwise → display and cache the ID.

Exactly-once delivery is impossible in distributed systems. Network failures, dropped acknowledgments, and crashed nodes make it provably unachievable (Two Generals Problem, FLP impossibility). Design for at-least-once delivery with client-side deduplication.

---

Additional Components#

Component	Purpose
Notification Templates	Predefined formats stored in DB; consistent, error-free, saves time
Notification Settings	Per-user opt-in/opt-out preferences; checked before every notification is sent
Rate Limiting	Cap notifications per user to avoid overwhelming them
Retry Mechanism	On third-party failure, re-add to queue; alert if problem persists
Security (Push)	iOS/Android APIs secured with appKey + appSecret; only verified clients can send
Monitoring	Track queue size — large queues indicate slow processing; scale workers up
Event Tracking	Open rate, click rate, engagement metrics; add stage tracking to the pipeline

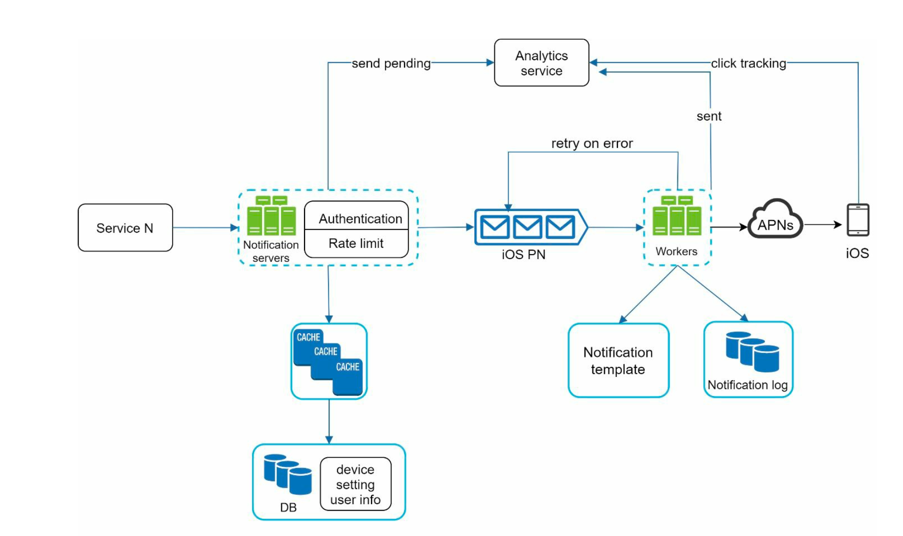

With all these components in place, the full system looks like this:

---

Step 6: DB Choices#

Component	Database	Why
User contact info (email, phone)	MySQL / PostgreSQL	Structured, relational; ACID guarantees for verified contact data
Device tokens	MySQL / PostgreSQL	One-to-many with User; foreign key enforces ownership; indexed lookup by user_id
Notification templates	MySQL / PostgreSQL	Small, infrequently updated structured data; easy to query and manage
Notification settings (opt-in/out)	MySQL / PostgreSQL	Tight relational coupling to User; checked on every send, so indexed reads matter
Notification log (delivery audit, retries)	Cassandra	Write-heavy — every delivery attempt appends a row; high throughput, time-series-like access pattern
Event tracking (open rate, click rate)	Cassandra / ClickHouse	Append-only analytics; optimised for time-range aggregation over large volumes
Cache (user info, device tokens, templates)	Redis	Sub-millisecond lookups; avoids hitting the DB on every notification dispatch
Message queue (worker jobs)	Kafka	Durable, high-throughput pub/sub; one topic per channel (APNs, FCM, SMS, email)

Why Cassandra for logs? Every notification attempt writes a row — never updates one. At 10M push + 5M email + 1M SMS per day, that's 16M+ appends daily. Cassandra's LSM-tree storage is built for exactly this: high write throughput, append-only, time-ordered queries.

Why Redis in front of Postgres? Device tokens and notification settings are read on every single dispatch. Redis keeps these hot so the relational DB never gets hammered.
