Caching

Caching is storing frequently accessed data in temporary storage to improve both latency (time per operation) and throughput (operation rate).

Two key parameters:

• Write Policy — how to sync writes between cache and DB
• Eviction / Replacement Policy — what to kick out when the cache is full (LRU, LFU, …)

---

Why Caching?#

• Reduce network calls
• Avoid repeated database queries
• Absorb uneven loads and traffic spikes
• Improve page load times

---

How Caching Works (Cache-Aside Flow)#

1. Look for entry in cache → cache miss
2. Load entry from the database
3. Add entry to cache
4. Return entry to the caller

---

Drawbacks#

• Poor hit rate if cache doesn't store what users need
• Must maintain consistency between cache and DB (cache invalidation → eventual consistency)
• Cache Thrashing — constantly evicting and reloading the same items

---

Types of Caches#

Type	Description	Examples
In-Memory Cache	Data in RAM; extremely fast access	Redis, Memcached
Distributed Cache	Spans multiple servers; for large-scale systems	Redis Cluster, Amazon ElastiCache
Client-Side Cache	Stored on client device (cookies, local storage, browser cache)	Browser cache
Database Cache	Stores frequently queried results; reduces DB queries	Query result caches
CDN	Stores content on geographically distributed servers	Cloudflare, CloudFront

---

Caching Strategies#

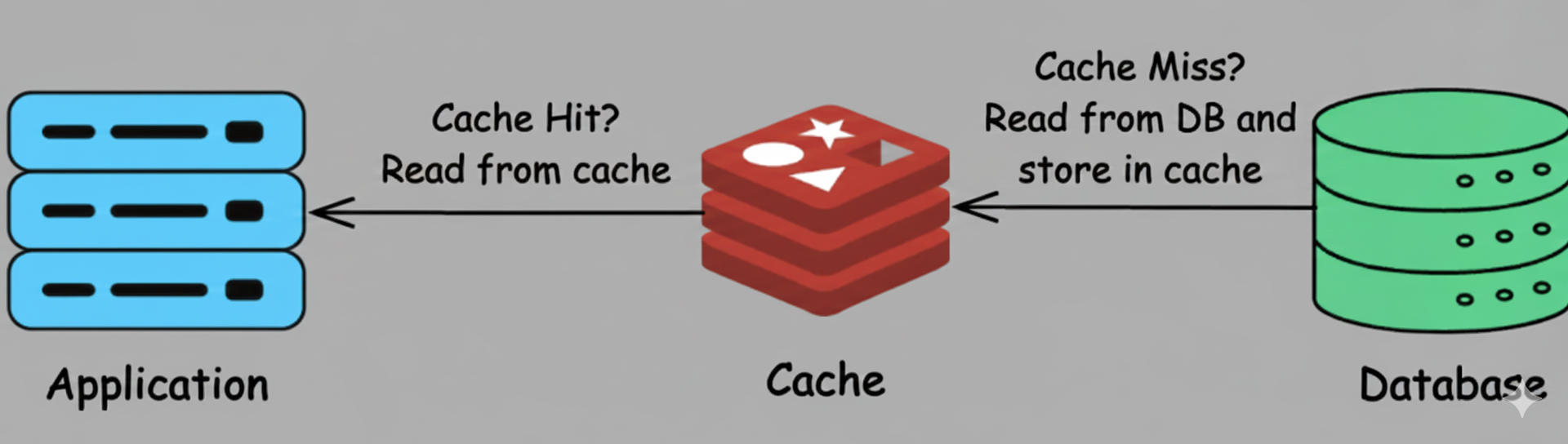

Read-Through#

The cache acts as an intermediary. On a miss, the cache itself fetches from the DB and populates itself.

• ✅ Simplifies application logic
• ✅ Only frequently accessed data stays cached
• ❌ Initial read has extra latency (cache fetches from DB)
• Use TTL to avoid stale data

Best for: Read-heavy apps where data is accessed often but updated rarely — CDNs, social media feeds, user profiles.

---

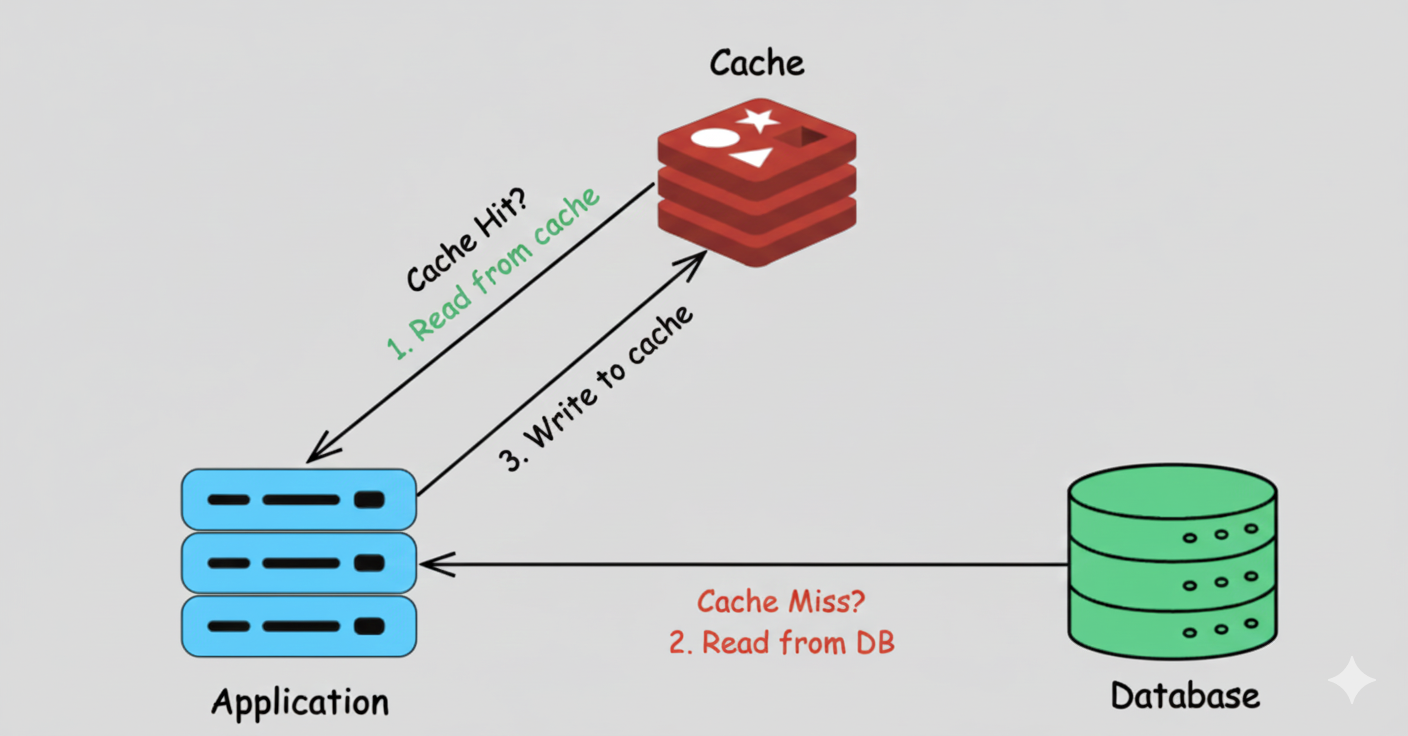

Cache-Aside (Lazy Loading)#

The application handles reading from cache and loading on misses. Cache is a "sidecar" to the database.

1. Check cache → hit: return data; miss: fetch from DB
2. Load fetched data into cache for next request
3. Set TTL to prevent stale data

Best for: High read-to-write ratio with infrequent updates — e.g., e-commerce product catalog.

---

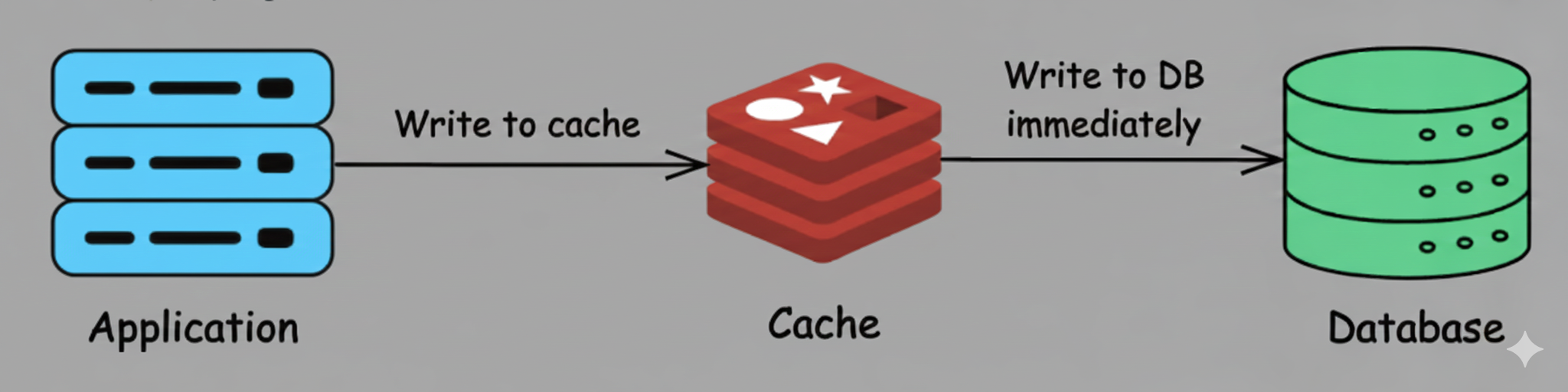

Write-Through#

Every write goes to both the cache and DB simultaneously. Synchronous — no delay in data propagation.

• ✅ Strong consistency; cache always has latest data
• ✅ No TTL needed in most cases
• ❌ Higher write latency (writes to two places)

Best for: Consistency-critical systems — financial apps, online transaction processing.

---

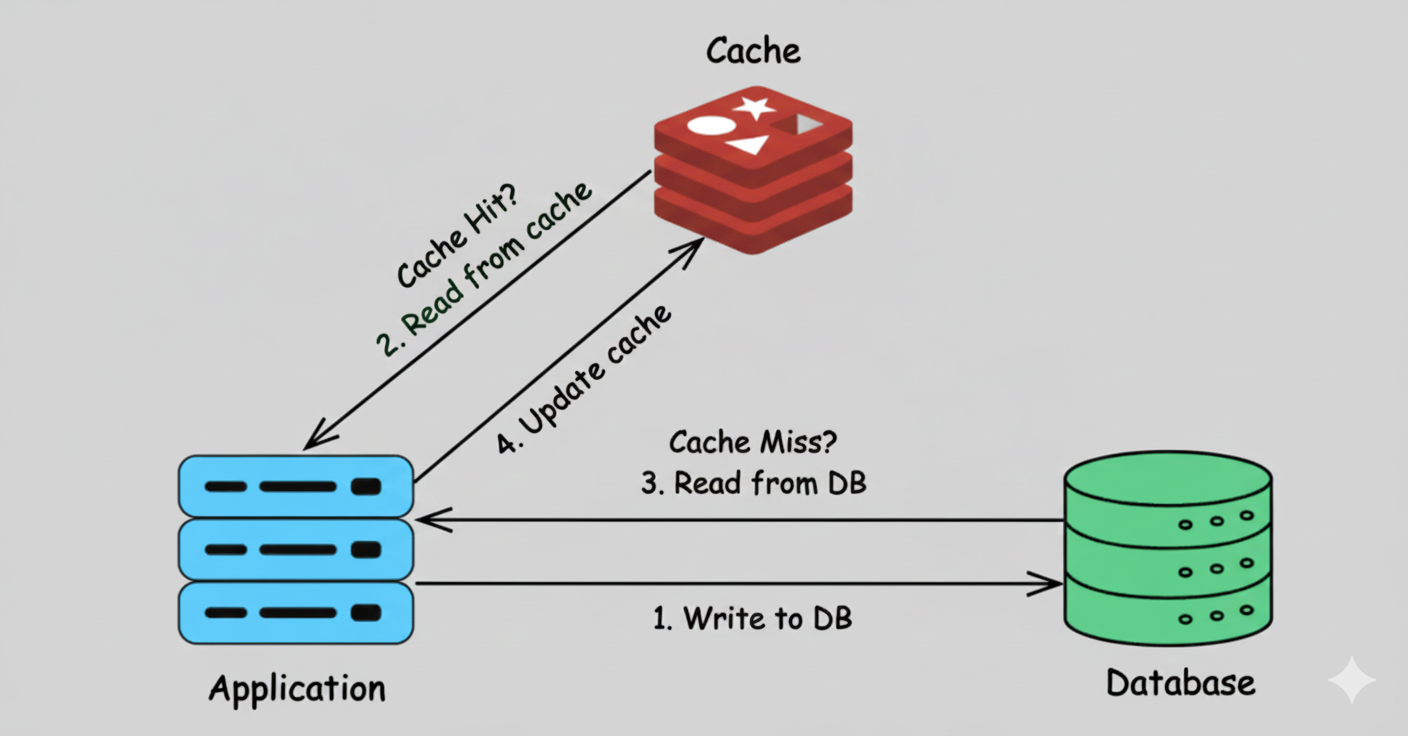

Write-Around#

Writes go directly to the DB, bypassing the cache. Cache is populated only on subsequent reads (via cache-aside).

• ✅ Cache stays clean — only frequently accessed data gets cached
• ✅ Writes are faster (single destination)
• ❌ First read after write always hits the DB (cache miss)

Best for: Write-heavy systems where data is rarely re-read — logging, audit trails.

---

Write-Back (Write-Behind)#

Data is written to cache first, then asynchronously written to DB in the background.

• ✅ Lowest write latency
• ❌ Risk of data loss if cache fails before syncing to DB
• Mitigated with Redis AOF (Append Only File) for persistence

Best for: Write-heavy scenarios where speed matters over immediate consistency — gaming state, social media feeds.

---

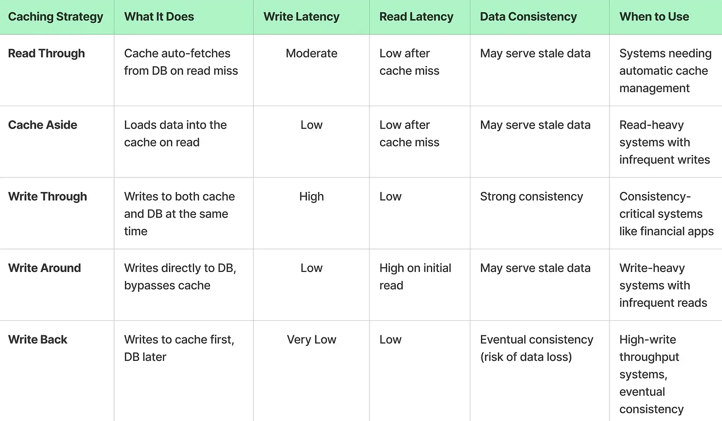

Write Policy Comparison#

Feature	Write-Through	Write-Back	Write-Around
Write Location	Cache ✅ + DB ✅	Cache ✅ only (DB later)	DB ✅ only
Read After Write	Fast ✅ (in cache)	Fast ✅ (in cache)	Slow ❌ (not in cache yet)
Write Latency	Slower ❌	Fast ✅	Fast ✅
Cache Pollution	Possible ❌	Possible ❌	Avoided ✅
Data Consistency	High ✅	Lower ❌ (risk if cache lost)	High ✅

Quick Use-Case Reference#

Scenario	Strategy
Financial transactions, logs	Write-Through
Gaming state or temporary calculations	Write-Back
Logging, rarely-read audit trails	Write-Around

---

Cache Eviction Policies#

When the cache is full, these policies decide what to remove:

Policy	Description
LRU (Least Recently Used)	Evicts the least recently accessed item
LFU (Least Frequently Used)	Evicts items accessed the fewest times
FIFO	Evicts the oldest item regardless of access pattern
TTL (Time-to-Live)	Removes items after a fixed duration
MRU (Most Recently Used)	Removes the most recently used item
ARC (Adaptive Replacement Cache)	Balances between LRU and LFU dynamically

Memcached uses Segmented LRU (blend of LRU + LFU).

---

Challenges and Considerations#

Challenge	Description
Cache Coherence	Keeping cache consistent with the source of truth (DB)
Cache Invalidation	Knowing when and how to remove stale data
Cold Start	Handling an empty cache after system restart
Cache Penetration	Repeated queries for non-existent data overwhelm the backend
Cache Stampede	Many concurrent requests try to rebuild the cache simultaneously
