Designing a Key-Value Store

A key-value store is a non-relational database that uses simple key-value pairs to store data. Keys are unique; values can be strings, numbers, JSON, or binary. Key-value stores are optimised for high performance, scalability, and flexibility — ideal for caching, session management, and real-time analytics.

Step 1: Requirements and Design Scope#

• Support basic operations: put(key, value) and get(key).
• Key-value pair size is small (a few KBs).
• Ability to store large data sets (a few TBs total).
• High availability — responds quickly even during failures.
• High scalability — can be scaled to support large data sets.
• Automatic scaling — scales up/down based on load.
• Tunable consistency — choose between strong and eventual per use case.
• Low latency — fast reads and writes.

Step 2: High Level Design#

Single Server Key-Value Store#

• Store key-value pairs in a hash table, keeping everything in memory.
• Fast reads and writes but memory is expensive and limited.
• Optimisations: data compression; evict cold data to disk.
• Even with optimisations, a single server cannot handle large data sets.

Distributed Key-Value Store#

To handle large data sets, distribute data across multiple servers.

CAP Theorem#

A distributed system can guarantee at most two of:

Since network partitions are unavoidable in distributed systems, you choose between CP (consistency over availability) or AP (availability over consistency) depending on your use case.

System Components and Techniques#

1. Data Partitioning#

For large applications, data is spread across multiple servers.

Techniques:

Consistent hashing is the standard choice:

• Automatic scaling — minimal data movement when nodes join/leave.
• Heterogeneity — servers with double the capacity get double the virtual nodes.

2. Data Replication#

• Each key is replicated to the next N clockwise nodes on the hash ring (N is configurable).
• If a node goes down, replicas on other nodes serve the data.
• With virtual nodes, the first N distinct physical servers clockwise are used.
• Replicas placed across multiple data centres for fault isolation.

3. Consistency Model#

Quorum parameters:

N → number of replicas
W → replicas that must acknowledge a write for it to succeed
R → replicas that must respond for a read to succeed

Key-value stores typically default to eventual consistency — concurrent writes are allowed and clients reconcile versions on read.

4. Inconsistency Resolution#

In eventually consistent systems, replicas may hold conflicting versions due to concurrent writes, network partitions, or delayed replication. Systems track versions instead of overwriting blindly.

5. Handling Failures#

A. Failure Detection#

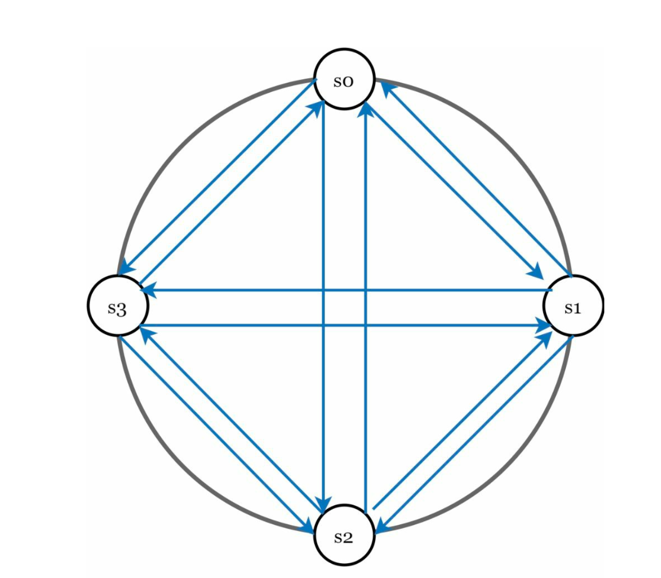

1. All-to-All Heartbeat Every node sends heartbeats to all others. If a heartbeat isn't received within a timeout, the node is marked failed.

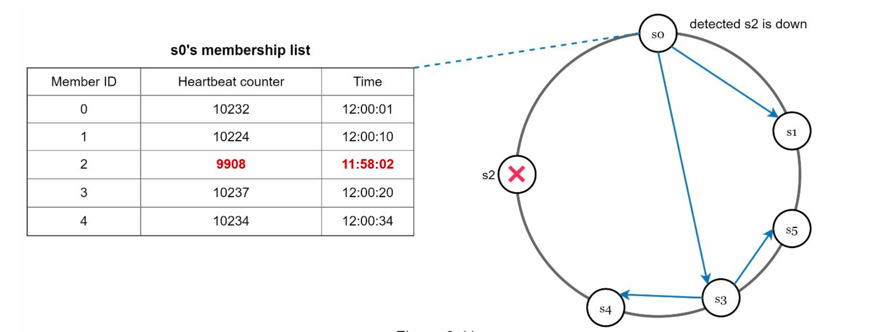

2. Gossip Protocol (preferred at scale)

• Each node maintains a membership list with member IDs and heartbeat counters.
• Nodes periodically increment their own counter and send it to a random set of peers.
• Peers propagate the info further.
• If a heartbeat counter hasn't increased in a predefined period → node marked offline.

B. Handling Temporary Failures#

• Strict quorum: reads/writes block until required replicas are available.
• Sloppy quorum: system picks the first W healthy servers for writes, first R for reads — continues despite partial outages.

Hinted Handoff — writes intended for an unavailable node are stored on a different node with a "hint". Once the original node recovers, hints are forwarded to it.

Read Repair — if a node detects stale data during a read compared to other replicas, it updates itself.

C. Handling Permanent Failures#

Anti-Entropy — a background process that periodically compares replicas and syncs differences using Merkle trees.

A Merkle tree is a hash tree where each non-leaf node is labelled with the hash of its children. Allows efficient and secure verification of large data structures.

• If two replicas share the same root hash → data is identical.
• If root hashes differ → check children recursively until the differing branches are found.
• Only mismatched ranges need syncing — minimises network traffic.

D. Handling Data Centre Outages#

• Replicas are placed across multiple data centres.
• Data centres connect via high-speed networks for low-latency cross-region access.
• If one data centre goes down, clients read from replicas elsewhere.

Step 3: Detailed Design#

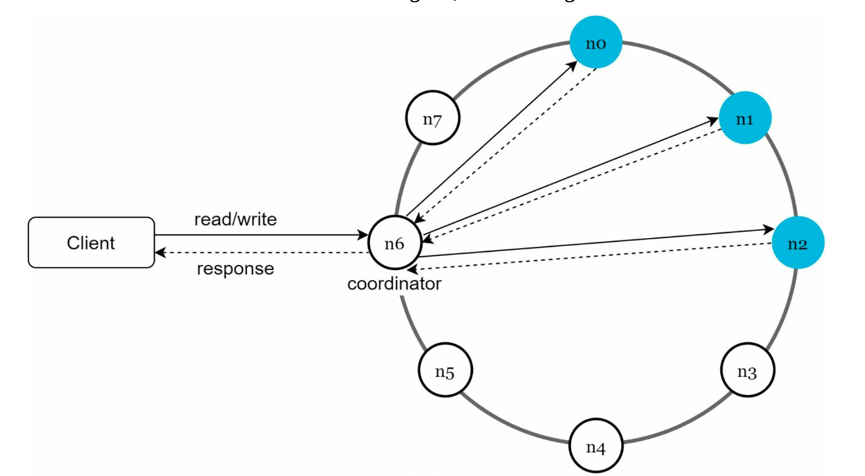

Architecture Diagram#

• Clients communicate via simple get(key) / put(key, value) APIs.
• A coordinator node acts as proxy between client and the store.
• All nodes are placed on a consistent hash ring.
• The system is fully decentralised — every node has the same responsibilities.
• Data is replicated at multiple nodes; no single point of failure.

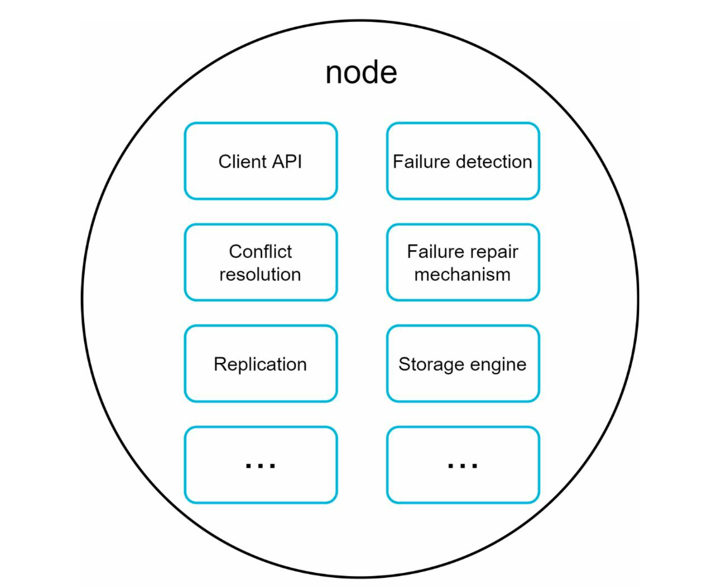

Each node carries the same responsibilities:

Consistent Hashing Flow#

1. Hash the key — hash("user123") → 856.
2. Map nodes to the ring — Node A → 100, Node B → 500, Node C → 900.
3. Locate the key's node — move clockwise; hash = 856 → closest node clockwise is C (900).
4. Replication (optional) — store copies on the next N nodes clockwise.
5. Node joins/leaves — only nearby keys need redistribution.

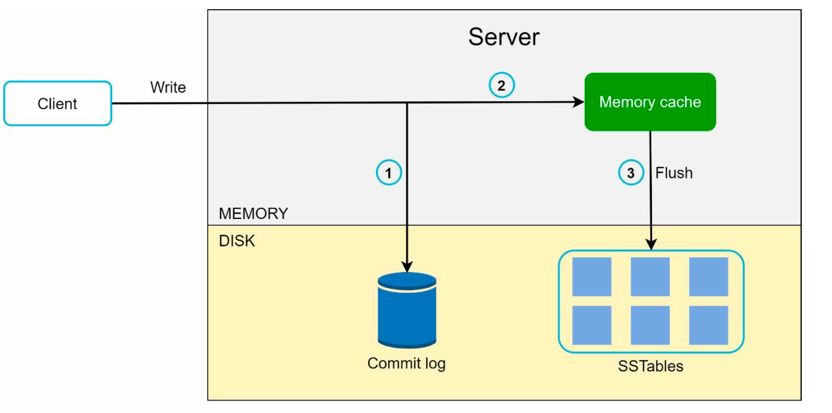

Write Path#

1. Client sends put(key, value) to any coordinator node.
2. Coordinator uses consistent hashing to find responsible node(s).
3. Write is persisted to a commit log (append-only, ensures durability on crash).
4. Data is saved to the memory cache.
5. When cache is full or hits a threshold, data is flushed to SSTable on disk.

SSTable (Sorted-String Table) — a sorted list of <key, value> pairs stored on disk.

Read Path#

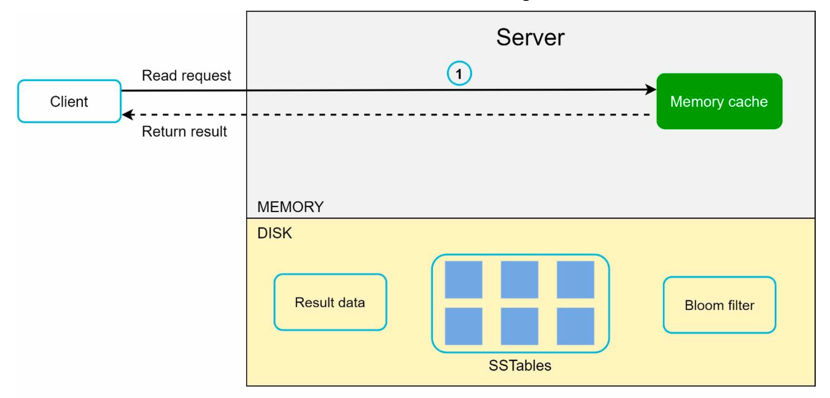

1. Read request arrives at the responsible node; it first checks the memory cache.

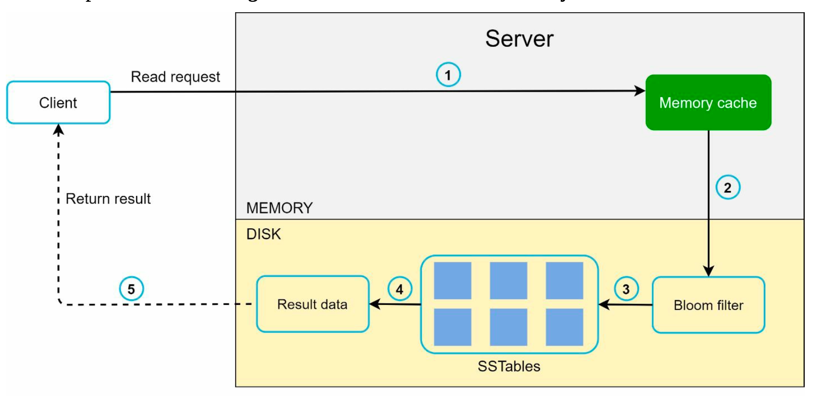

2. On a cache miss, the node consults the bloom filter to determine which SSTable files might contain the key.

   Bloom filter — a space-efficient probabilistic structure that can produce false positives but never false negatives.

3. The bloom filter narrows down candidate SSTables; the SSTable index locates the exact offset.

4. The value is retrieved from the SSTable on disk.
