Designing a Load Balancer

A Load Balancer distributes incoming network traffic across multiple servers so no single server becomes overwhelmed. Instead of routing all traffic to one server (which eventually crashes under heavy load), a load balancer acts as a traffic cop — intelligently spreading requests across a pool of healthy servers.

---

Requirements#

Functional#

• Traffic Distribution — distribute requests across backend servers using configurable algorithms.
• Health Checking — continuously monitor backends and auto-remove unhealthy ones from the pool.
• Session Persistence — support sticky sessions to route requests from the same client to the same server.
• SSL Termination — handle TLS encryption/decryption to offload work from backend servers.
• Layer 4 and Layer 7 — support both transport-level (TCP/UDP) and application-level (HTTP/HTTPS) load balancing.

Non-Functional#

• High Availability — 99.99% uptime, no single point of failure.
• Low Latency — < 1ms added overhead per request.
• High Throughput — up to 1 million requests per second at peak.
• Scalability — horizontal scaling to handle increasing traffic.
• Fault Tolerance — continue operating when individual components fail.

---

Estimations#

Category	Metric	Value
Peak RPS	Max load	1,000,000
Average RPS	~⅓ of peak	~300,000
Concurrent connections	RPS × avg duration (0.5s)	~500,000
Ingress bandwidth	1M × 2 KB	2 GB/s
Egress bandwidth	1M × 10 KB	10 GB/s
Total bandwidth	—	~12 GB/s (~96 Gbps)
Memory per connection	~500 bytes × 500K connections	~250 MB
Health checks	1000 servers / 5s interval	200 checks/sec

Primary bottleneck: network bandwidth (~96 Gbps) — requires horizontal scaling.

---

Core APIs (Control Plane)#

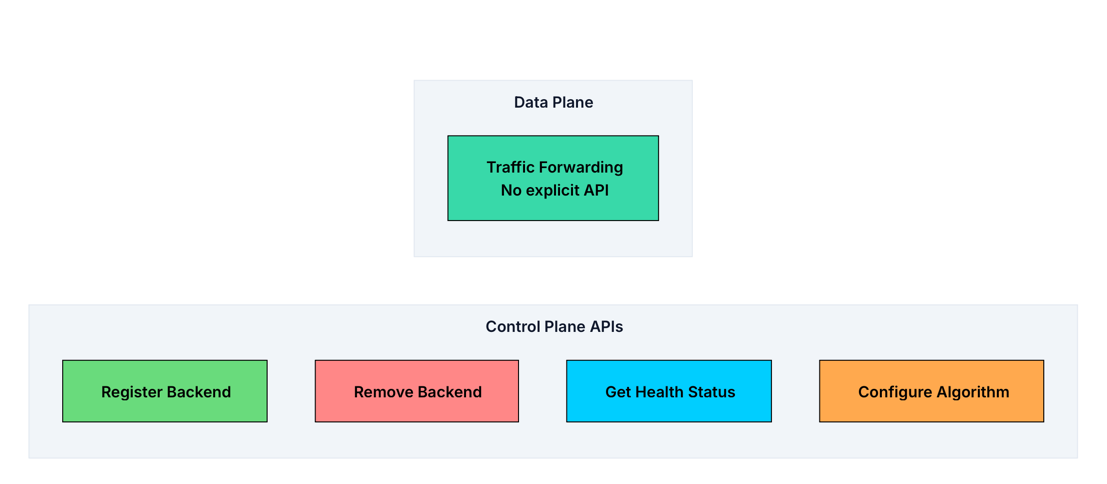

The system splits into two planes:

Plane	Purpose	Characteristics
Data Plane	Handles actual request traffic	High throughput, low latency
Control Plane	Configuration & management	Low traffic, explicit APIs

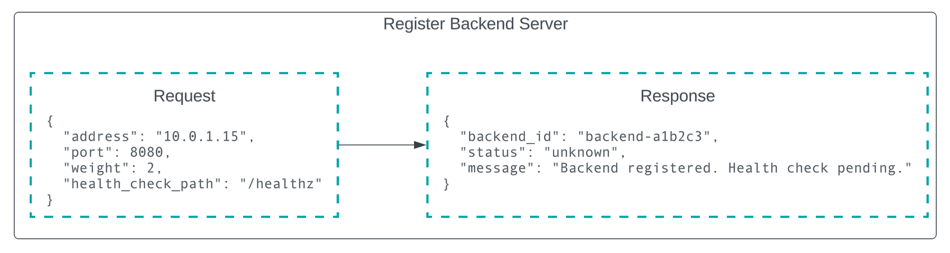

1. Register Backend Server#

POST /backends

Adds a server to the pool and starts health checking it. Initial status is "unknown" — transitions to "healthy" or "unhealthy" after the first health check.

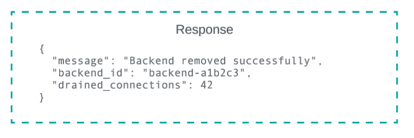

2. Remove Backend Server#

DELETE /backends/{backend_id}

Decommissions a server — stops new traffic immediately, allows existing connections to complete gracefully (connection draining).

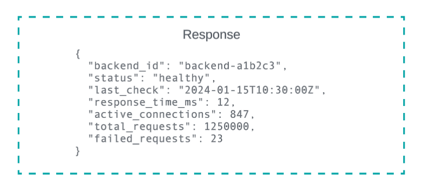

3. Get Backend Health Status#

GET /backends/{backend_id}/health

Returns detailed health info including current state and historical metrics — useful for debugging and monitoring dashboards.

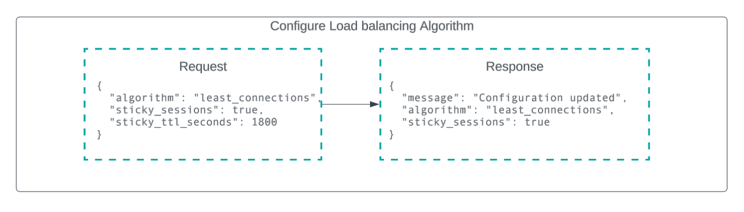

4. Configure Load Balancing Algorithm#

PUT /config/algorithm

Changes traffic distribution algorithm. Takes effect immediately for new connections; existing connections are not affected.

---

High Level Design#

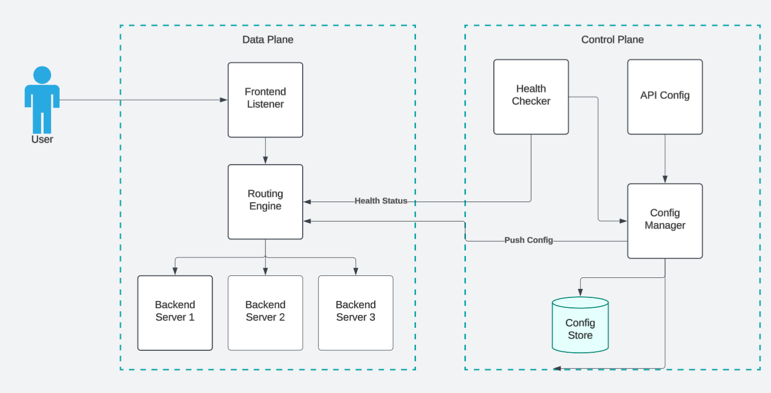

The architecture splits into two parts:

• Data plane — handles actual traffic at high speed; every request flows through it.
• Control plane — manages configuration and health checking (slower pace; changes are infrequent).

1. Traffic Distribution#

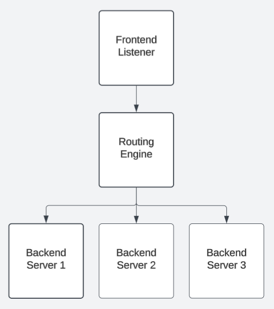

Three components handle request routing:

Frontend Listeners — bind to ports (80/443), accept TCP connections, parse enough of the request for routing decisions (headers, URL path for L7), and hand off to the routing engine.

Routing Engine — the brain of the LB. Maintains the backend list, health state, connection counters, and configured algorithm. Selects the target backend for every incoming connection.

Backend Pool — a logical group of interchangeable servers.

• Simple: single pool, all requests routed to one group.
• Complex: multiple pools by service type — API pool, static content pool, auth pool.

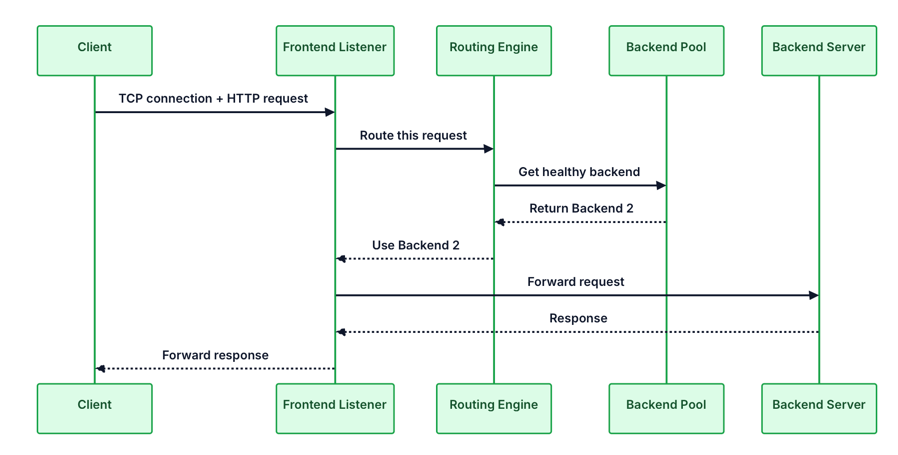

Request Flow#

1. Client sends a request to the LB's public IP.
2. Frontend listener accepts the TCP connection; parses request metadata for L7.
3. Routing engine filters unhealthy backends, applies algorithm, selects target.
4. Request forwarded to selected backend.
5. Backend processes and responds; LB forwards response to client.
6. Connection kept alive (HTTP keep-alive) or closed per configuration.

---

2. Health Monitoring#

Without health checking, the LB blindly sends traffic to dead servers — users see errors. The Health Checker is a background process that:

• Probes each backend every 5–10 seconds.
• Tracks successive successes and failures.
• Marks unhealthy after 2–3 consecutive failures; re-enables after 2–3 consecutive successes.
• Notifies the routing engine on every status change.

Type	How it works	When to use
TCP Check	Opens + closes TCP connection	Basic connectivity
HTTP Check	GET /health → expects 2xx	Web apps / APIs
Custom Script	User-defined script	Complex validation, legacy systems

Most production deployments use HTTP health checks — the application exposes /health or /healthz that returns 200 OK only when it can actually handle requests.

---

3. High Availability#

Problem: the LB is now a single point of failure.

Solution: run multiple LB instances.

Aspect	Active-Passive	Active-Active
Traffic handling	Only one node serves traffic	All nodes serve simultaneously
Client connection	Via VIP (Virtual IP)	Multiple IPs or shared IP
Failover	Standby takes over VIP (1–3s)	Other nodes continue, no downtime
Resource utilization	❌ 50% wasted (idle standby)	✅ Fully utilized
State management	No sync needed	Requires shared state store
Scalability	Limited	Highly scalable

Active-active is the better choice for production. Full resource utilization and instant failover outweigh the added complexity of state sync.

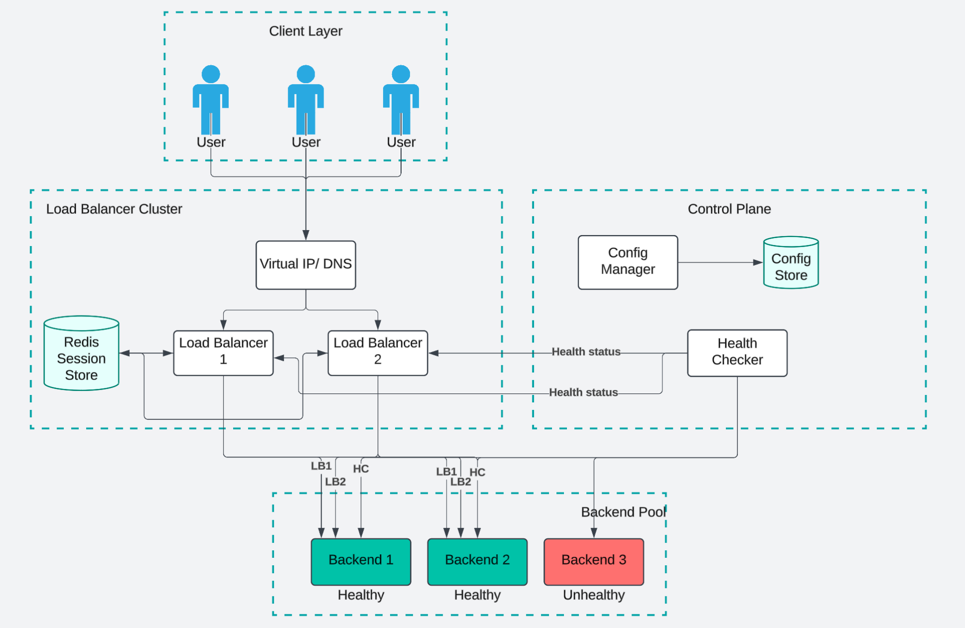

How it works:

1. Clients connect to the VIP — they never know which LB node handles them.
2. Both LB nodes serve traffic simultaneously (active-active).
3. Each LB node routes only to healthy backends (unhealthy ones are excluded).
4. Sticky session state stored in Redis — any LB node can look up which backend a user belongs to.
5. Health Checker monitors all backends and both LB nodes continuously.
6. Config Manager pushes updates to all LB nodes from a central Config Store (etcd/Consul).

Component Summary#

Component	Role
Virtual IP / DNS	Stable entry point; abstracts the LB cluster
LB Nodes	Accept requests; route to backends — stateless, horizontally scalable
Session Store (Redis)	Shared sticky session mappings across LB nodes
Health Checker	Background process; ensures only healthy nodes receive traffic
Config Manager	Manages LB config via APIs; handles updates and validation
Config Store	Persists config (etcd, Consul, or PostgreSQL)
Backend Pool	Application servers; organized by service type

---

Database Design#

Data Type	Storage	Why
Active connections	In-memory (per LB node)	Microsecond latency; local ownership
Backend health status	In-memory (per LB node)	Frequently updated; fast routing access
Connection counters	In-memory (per LB node)	Updated every request (least-connections)
Session mappings	Redis cluster	Shared across LB nodes for sticky sessions
Backend configuration	etcd / Consul / PostgreSQL	Persistent, versioned, survives restarts
Metrics & logs	Prometheus / InfluxDB	Historical analysis and alerting

Hot path must never touch disk or cross a network boundary for core routing. Config is loaded into memory at startup and updated via push notifications.

---

Deep Dive#

Load Balancing Algorithms#

Algorithm	Complexity	State	Adaptive	Best For
Round Robin	Very simple	Stateless	None	Homogeneous backends, uniform requests
Weighted Round Robin	Simple	Stateless	None	Known capacity differences, gradual rollouts
Least Connections	Moderate	Per-node state	High	Variable request processing times
Weighted Least Connections	Moderate	Per-node state	High	Production systems (default recommendation)
IP Hash	Simple	Stateless	None	Basic session persistence, non-HTTP protocols
Consistent Hashing	Complex	Stateless	None	Dynamic scaling, cache servers

Recommendations:

• Default to Weighted Least Connections — handles heterogeneous backends and variable request costs.
• For session persistence, prefer cookie-based stickiness over IP hash (IP hash is fragile due to NAT).
• Use Consistent Hashing when backends scale frequently or when load balancing cache servers.

---

Session Persistence (Sticky Sessions)#

Problem: stateful applications store session data in a specific backend's memory. A subsequent request routed to a different backend looks like a logout.

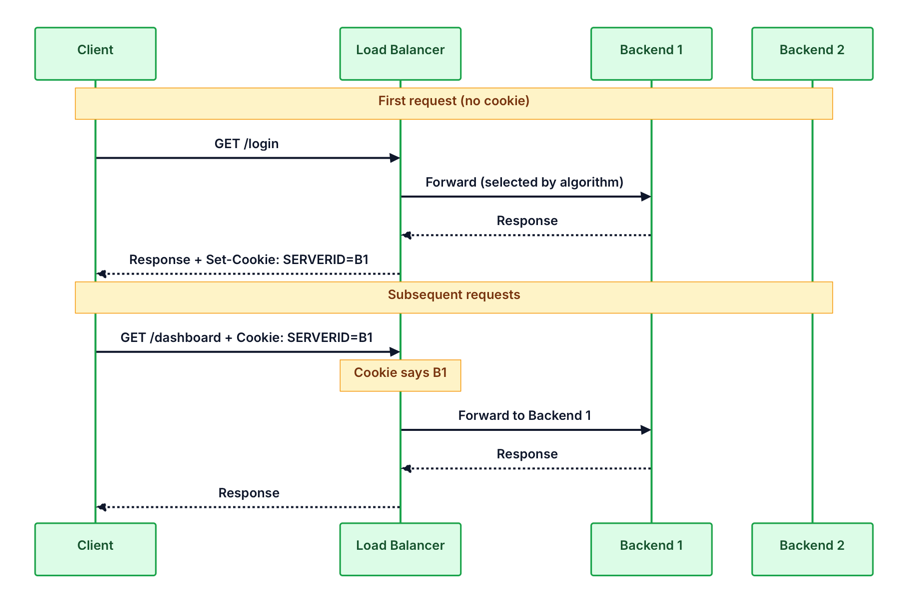

Approach 1: Cookie-Based Stickiness (Recommended for HTTP)#

The LB injects a cookie identifying the target backend. Every subsequent request includes the cookie.

✅ Works regardless of client IP changes (mobile, corporate NAT)
✅ Survives LB restarts
✅ No shared state between LB nodes

Approach 2: Source IP Persistence#

Routes based on hash(client_ip) % n. Use only for non-HTTP protocols or when cookies are not possible. Breaks for mobile users and corporate NAT.

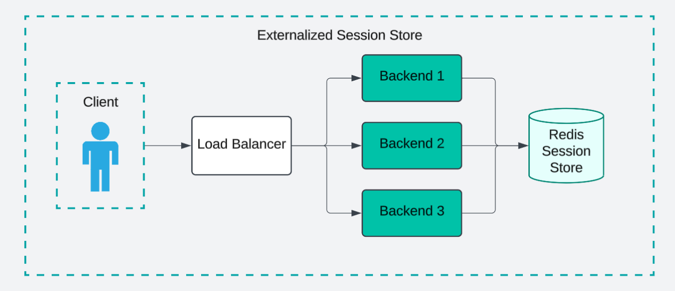

Approach 3: Externalized Session Store (Best Long-Term)#

Store session data in a shared Redis cluster — makes backends fully stateless.

✅ No sticky sessions needed — any LB algorithm works
✅ Backends scale freely
✅ Backend failures don't cause session loss

Always build new applications stateless. Use externalized session store.

---

Layer 4 vs Layer 7#

Aspect	Layer 4 (TCP/UDP)	Layer 7 (HTTP/HTTPS)
Routing basis	IP + Port	URL, headers, cookies, body
Performance	⚡ Very high (packet-level)	Moderate (request inspection)
Content awareness	❌	✅
SSL termination	❌	✅
Caching / Auth / Rate Limiting	❌	✅
Examples	AWS NLB, HAProxy	NGINX, AWS ALB

---

SSL/TLS Termination#

LB handles all encryption; backends receive plain HTTP.

Benefits:

• One place to install/renew certificates (not on every backend).
• Offloads CPU-intensive cryptography from backends.
• Enables content-based routing (URL/header inspection requires decrypted traffic).
• TLS session caching — repeat visitors skip the full handshake.

Security trade-off: backend ↔ LB connection is unencrypted.

• Inside a private VPC → acceptable.
• For end-to-end encryption → re-encryption (LB decrypts, inspects, re-encrypts) or SSL passthrough (LB routes based on SNI, no content inspection).

---

Failure Handling#

Detection mechanisms:

• Heartbeat messages — LB nodes exchange "I'm alive" every 1–3 seconds.
• Health checks — same mechanism used for backends, applied to LB nodes.
• Shared storage heartbeats — write timestamps to etcd/Redis to detect liveness.

Balance sensitivity: too sensitive → false positives (brief network hiccup declared dead); too slow → extended outage.

Graceful degradation (Connection Draining):

1. Detection — health check fails.
2. Draining — stop new traffic; allow existing connections to complete.
3. Removal — fully remove backend once in-flight requests finish.
4. Recovery — add backend back once it passes the success threshold.
